Sheet Metal Laser Cutting Robot High Speed 3D Pipe Laser Cutting Side Mounted
| Place of Origin | China |
|---|---|
| Brand Name | Mingzhou |
| Certification | ISO quality system certificate |
| Model Number | B12 |
| Minimum Order Quantity | 1SET |
| Price | 300000.00 |
| Packaging Details | Wooden Frame, Wooden case, Pallet |
| Delivery Time | 15 days |
| Payment Terms | T/T,L/C,Western Union,MoneyGram |
| Supply Ability | 1000 sets |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | B12 | Laser Power(w) | 1500-6000 |
|---|---|---|---|
| Processing Range | Round Pipe:φ8mm-φ120mm | Rectangular Tube | Circumcircle≤φ120mm |
| Irregular Pipe | Circumferential Circle≤phi120mm | Weight Of Single Pipe | Maximum Load Of Both Chucks Toge Ther 100kg |
| Repeatpositioning Accuracy (MM) | ±0.02 | Pipe Length Range (MM) | ≈6250 |
| Machine Size (MM) | L*W*H:8856×1365×2172 | Machine Weight (T) | ≈3.5 |
| Maximum Acceleration (G) | ≈1.3 | Tailings Length (MM) | ≈60 |
| Highlight | Side Mounted sheet metal laser cutting machine,Robot sheet metal laser cutting machine,1500w pipe laser cutting |
||
Product Description

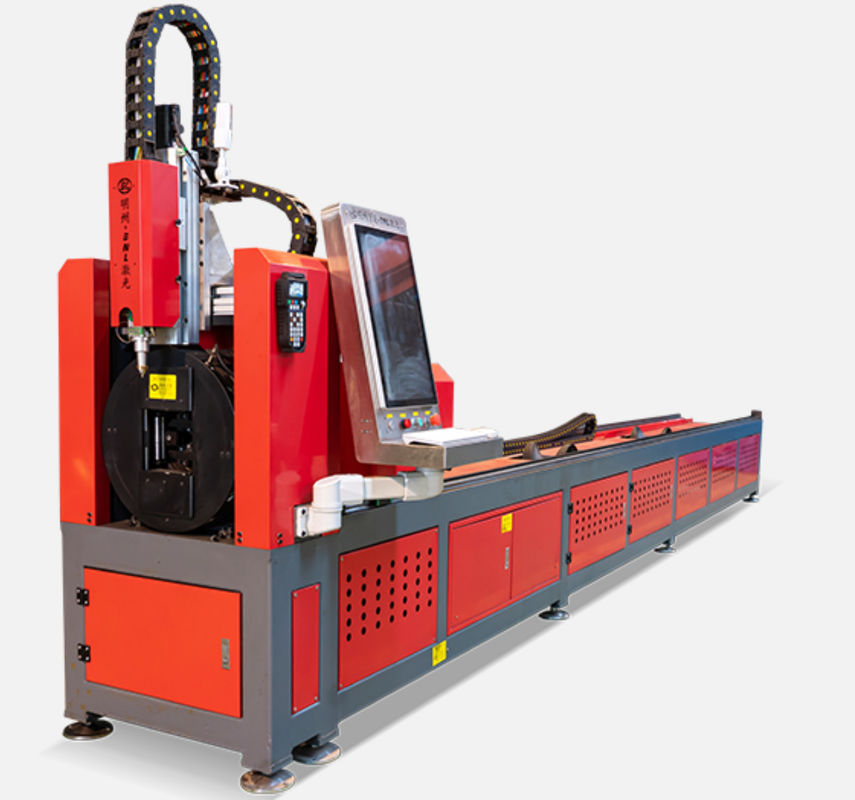

Sheet metal Laser cutting Robot B12 High Speed 3D Laser Pipe Cutting Machine ( Side Mounted)
1: The front chuck can be cut in a movable way, and the tail material is super short to about 35MM or "0" tail material design, which can greatly improve the utilization rate of materials and save materials.
2: Drawing-free pipe cutting system: ordinary masters can quickly get started, eliminating the production method of drawing traditional three-dimensional drawings for conventional pipes and hole types
3: Bus control system: The entire series adopts a bus control system, multi-axis linkage, to achieve frog jump, flying cutting and other processes, and the efficiency is about 30% higher than the traditional pulse system.
4: Full-stroke chuck: automatic centering, multi-material and multi-shape pipes do not need to change the fixture
5: The rear chuck automatically blows air, the claws are not easy to get stuck, and the pipe wall is cleaner.
6: Left/right model customization: more suitable for the placement of the factory, convenient for the master to operate and save floor space, saving manpower and space.
7: Multiple cutting types: square tubes, round tubes, oval tubes, channel steels, angle steels, I-beams and other pipes.
Many cutting types: square tubes, round tubes, oval tubes, channel steels, angle steels, I-beams and other pipes.
This equipment can perform efficient three-dimensional cutting on various types of small and medium-sized pipes, a star product in the hardware and furniture industry!
Description
The standard laser power is 1500W, and other powers are optional. The chiller with 1500W laser is a horizontal model as standard, placed in the main machine body, with less noise and less space. Chillers of other powers are vertical, external models, placed at any position outside the main machine.
Appearance
Standard: gray frame + red sheet metal, optional: blue frame + white sheet metal (other colors can be customized).
Important tips
If the appearance and parameters of the equipment are changed without further notice, only the terms of our technical plan and order confirmation are binding, and the contract and the real object shall prevail.
Feeding system (optional): the feeding frame is smooth and fast, with automatic and semi-automatic feeding system is optional.
Sagging system (optional): solve the problem of residual residue cutting on the inner wall of the pipe and save the secondary vibration polishing process.
