Stainless Steel Steel Tube Laser Cutting Machine High Speed 3D Tube Cutting Horizontal
| Place of Origin | CHINA |
|---|---|
| Brand Name | MINGZHOU |
| Certification | ISO quality system certificate |
| Model Number | N23 |
| Minimum Order Quantity | 1 sets |
| Price | usd10000-30000 |
| Packaging Details | Pallet, wooden case |
| Delivery Time | 5-15 dyas |
| Payment Terms | T/T,Western Union,MoneyGram,L/C |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | N23 | Laser Power (W) | 1500-1600 |
|---|---|---|---|
| Round Pipe | φ15mm-φ230mm (in Accordance With GB/T17395-1998) | Rectangular Tube | Circumcircle≤φ230mm(in Accordance With National Standard GB/T6728-1986） |
| Special-shaped Pipe | Circumcircle≤φ230mm | Weight Of Single Pipe | Maximum Load Of Both Chucks Together 300kg |
| Repeatpositioning Accuracy (mm) | ±0.02 | Pipe Length Range | ≈6250 |
| Machine Size（mm） | L*W*H：8856*1365*2172 | Machine Weight （T） | ≈3.5 |
| Maximum Acceleration（G） | ≈1.0 | Tailings Length | ≈100 |
| Highlight | Stainless steel tube laser cutting machine,High Speed steel tube laser cutting machine,Horizontal steel tube laser cutting |
||
Product Description

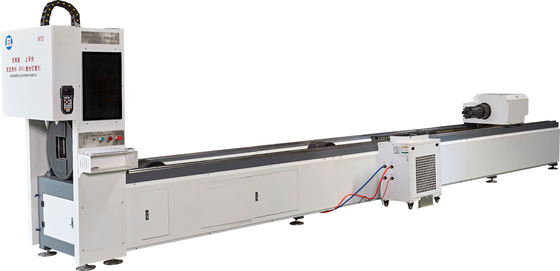

Stainless Steel Tube Cutting N23 High Speed 3d Laser Pipe Cutting Machine (Horizontal)
Drawing-free pipe cutting system: ordinary masters can quickly get started, eliminating the production method of drawing traditional three-dimensional drawings for conventional pipes and hole types.
Bus control system: The entire series adopts a bus control system, multi-axis linkage, to achieve frog jumping, flying cutting and other processes, and the efficiency is about 30% higher than the traditional pulse system.
Full-stroke chuck: automatic centering, multi-material and multi-shape pipes do not need to change the fixture.
The rear chuck automatically blows air, the claws are not easy to get stuck, and the pipe wall is cleaner.
Left/right model customization: more suitable for the placement of the factory, convenient for the master to operate and save floor space, saving manpower and space.
Many cutting types: square tubes, round tubes, elliptical tubes, channel steels, angle steels, I-beams and other pipes.
This equipment can perform efficient three-dimensional cutting of various types of small and medium-sized pipes, a star product in the hardware and furniture industry!
The standard laser power is 1500W, and other powers are available.The chiller with 1500W laser is a horizontal model as standard, which is placed in the main body, with less noise and smaller footprint.Chillers of other powers are vertical and external models, which are placed at any position outside the main machine.

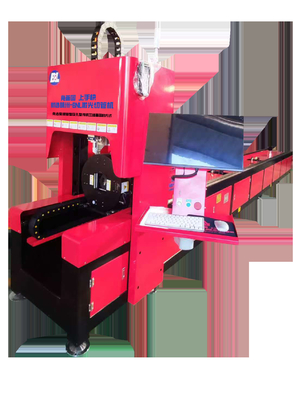

Standard: rack gray + sheet metal red, optional: rack blue + sheet metal white (other colors can be specially made).
If the appearance and parameters of the equipment are changed without further notice, only the terms of our technical plan and order confirmation are binding, and the contract and the real object shall prevail.
Optional:
Feeding system (optional): the feeding frame is smooth and fast, with automatic and semi-automatic feeding system is optional.
Sagging system (optional): solve the problem of residual residue cutting on the inner wall of the pipe and save the secondary vibration polishing process.
| Technical Parameter: | |||
| Model | N12 | N16 | N23 |
| Laser power(W) | 1500-6000 | 1500-6000 | 1500-6000 |
| Processing range | Round pipe: φ8mm-φ120mm | Round pipe:φ10mm-φ160mm | Round pipe:φ15mm-φ230mm |
| Rectangular tube: circumcircle ≤ φ120mm | Rectangular tube:circumcircle≤φ160mm | Rectangular tube:circumcircle≤φ230mm | |
| Exform tube: External round ≤φ120mm | Exform tube: External round ≤φ160mm | Exform tube: External round ≤φ230mm | |
| The quality of pipes shall meet the requirements of GB/T17395-1998. For special-shaped pipes, please consult the technical personnel of our company. | |||
| Weight of single pipe | Maximum load of both chucks together 100 kg | Maximum load of both chucks together 140 kg | Maximum load of both chucks together 300 kg |
| Repeatpositioning accuracy | ±0.02 | ±0.02 | ±0.05 |
| Pipe length range(mm) | ≈6250 | ≈6250 | ≈6250 |
| Machine size(mm) | L*W*H:8856*1365*2172 | L*W*H:8856*1365*2172 | L*W*H: 8856*1365*2172 |
| Machine weight(T) | ≈3.5 | ≈3.5 | ≈3.5 |
| Maximum acceleration (G) | ≈1.6 | ≈1.3 | ≈1.0 |
| Tailings length(mm) | ≈60 | ≈80 | ≈100 |
| Appearance | Standard: rack gray + sheet metal red, optional: rack blue + sheet metal white (other colors can be specially made) . | ||
| Important note | If the appearance and parameters of the equipment are changed without further notice, only the terms of our technical plan and order confirmation are binding, and the contract and the real object shall prevail. | ||
