Stainless Steel Pipe Fully Automatic CNC Punching And Cutting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | MINGZHOU |
| Certification | ISO |
| Model Number | MZ-125AC2-Q2 |
| Minimum Order Quantity | 1pc |
| Price | USD1000-10000 |
| Packaging Details | Carton, pallet, wooden case, wooden frame |
| Delivery Time | 5-15 days |
| Payment Terms | T/T,Western Union,MoneyGram,L/C |
| Supply Ability | 1000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hydraulic Motor Power (kw) | 11 | Cutting Motor Power (kw) | Standard 2.2kw-carbon Brush Type-220v (optional 380V High-speed Cutting Motor And Water-cooled Low-speed Cutting) |
|---|---|---|---|
| Cylinder Specifications (mm) | Engineering High-pressure Cylinder ROB125×100 | Punching Stroke (mm) | 100 |
| Punching Force (kn) | 196 | Rated Pressure(Mpa) | 12(Max:16) |
| Stamping Materials And Objects | Materials: Aluminum, Iron, Stainless Steel, Copper, PVC; Profiles: Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Special Profiles | Punching Profile Size (mm) | Square Tube: Max Half Hole 60×60; Full Hole: 50×50; Angle Iron: L60×60; Rectangular Tube: Max50×100 |
| Punching Size And Thickness (mm) | 0~3.0 | Cutting Saw Blade Specifications | Standard 300×2.5×25.4 Grinding Wheel Saw Blade Or 330 Alloy Magic Saw Blade/330×120T Aluminum Cutting Saw Blade |
| Power Supply (V) | 380v-50Hz | Control Voltage(V) | DC24V |
| Cooling Method | Forced Air Cooler 150L | Control System Type | Closed-loop Control System |
| Punching Frequency | 0.8~2.0 Seconds/time | Operating System | Human-machine Touch Screen Operation |
| Touchscreen | Kunlun Tongtai 7 Inches | Planetary Reducer | Double Support Helical Gear 120-10 |
| Guide | Linear Guide SBR30-6250 | Fuel Tank Capacity (L) | 210 |
| Fuel Tank Inspection Port | Have | Fuel Tank Drain Port | Quick Ball Valve |
| Work Light | DC24V-LED Work Light | Protection System | Hydraulic Pressure Protection, Voltage Protection, Motor Phase Loss And Phase Sequence Protection, Motor Overheat Protection |
| Working Length(mm) | 0~6000 | Dimensions (mm) | 7300×1500×1300 |
| Machine Weight (T) | 2.5 | Intellectual Property | Utility Model Patent, Design Patent |
| Highlight | Stainless Steel Pipe cutting punching machine,CNC cutting punching machine,CNC Fully Automatic laser punching machine |
||
Product Description

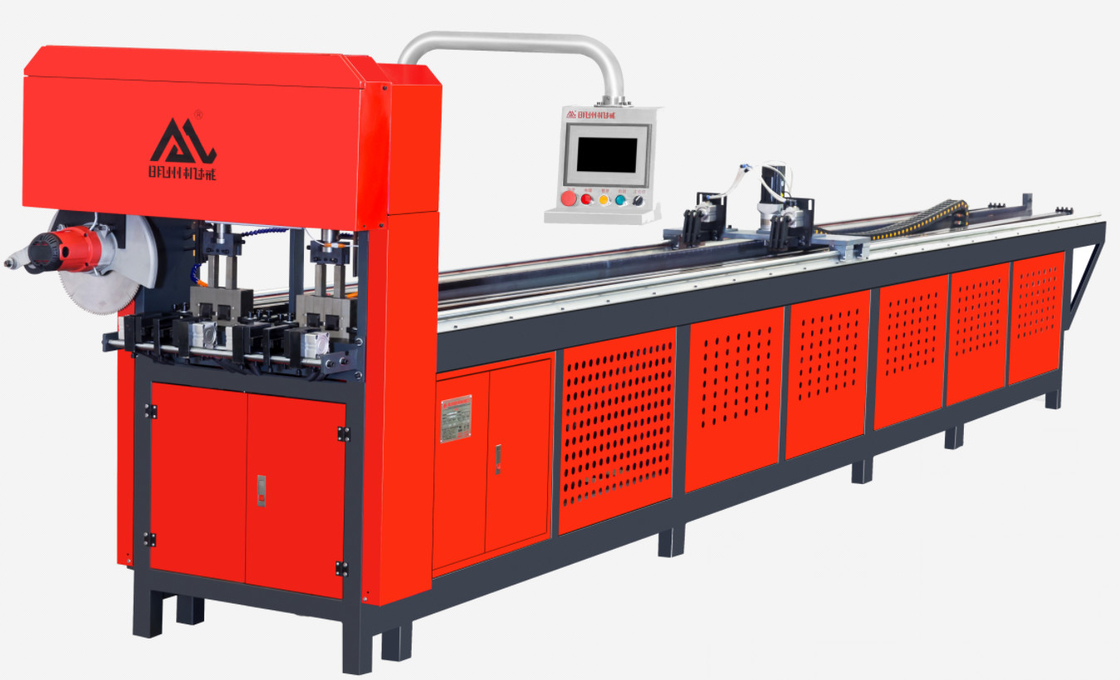

MZ-125AC2-QG Fully Automatic CNC Punching And Cutting Machine For Stainless Steel Pipe
This fully automatic CNC punching and cutting machine was developed by the company in 2013 based on the original automatic CNC punching machine after more than a year of research and development. It effectively combines the original two processes of cutting and then punching into one, reducing the cutting process, reducing the secondary handling, and reducing the turnover site. It also ensures the accuracy of the product cutting and punching processing dimensions; effectively reduces the labor intensity of workers, improves production efficiency, and enhances the competitiveness of the company.
Cut the pneumatic front clip, smooth and powerful, stable cutting. Double pipe mold, left and right processing can be 1-4 tubes at the same time.1 person tube 4 tube, higher efficiency, mold fast installation of positioning keyway, mold installation is faster, more relaxed.
300 degrees rotating man-machine table, let you operate. Single pipe / double pipe, large pipe / small pipe for easy and quick adjustment
Main functions:
1.Basic system parameter setting: set the left and right two working mode, statistical efficiency workload, set servo motor related parameters.2, manual operation system: manually start the stop motor, servo forward and backward, feeding fixture, cutting motor and other operations.3. Automatic punching system: automatic calculation of equal hole distance, not equal hole distance, free combination of unequal length hole punching and cutting, can arbitrarily control the full hole / half hole
