Fully Auto CNC Punching And Cutting Machine Channel Steel Profiles
| Place of Origin | China |
|---|---|
| Brand Name | mingzhou |
| Certification | ISO |
| Model Number | MZ-125ACZ |
| Minimum Order Quantity | 1pc |
| Price | USD100-10000 |
| Packaging Details | Pallet, wooden case, wooden frame |
| Delivery Time | 5-15 days |
| Payment Terms | T/T |
| Supply Ability | 1000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hydraulic Motor Power（kw） | 7.5 | Cylinder Specifications（mm） | 125*100 |
|---|---|---|---|
| Punching Stroke（mm） | 100 | Punching Force（kn） | 196 |
| Maximum Pressure（mpa） | 16 | Stamping Material | Aluminum, Iron, Stainless Steel, Copper, Pvc |
| Stamping Profiles （mm）） | Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Profiles | Punching Profile Size （mm）） | Square Tube: Max Half Hole 60×60; Full Hole: 50×50; Angle Iron: L60×60; Rectangular Tube: Max50×100 |
| Punching Size And Thickness（mm） | 0-3.0 | Power Supply （v） | 380v-50Hz |
| Control Voltage（V） | DC24V | Cooling Method | Forced Air Cooling Machine |
| Control System Type | Closed-loop Control System | Punching Frequency | 0.8-2.0 Seconds/time |
| Servo System | Schneider Drive Servo1KW | Operating System | Human-machine Touch Screen Operation |
| Touchscreen | Kunlun Tongtai 7 Inches | Planetary Reducer | Straight Teeth PLF120-10 |
| Rail Guide | Linear Guides SBR30-6250 | Fuel Tank Capacity（L） | 180 |
| Fuel Tank Inspection Port | Have | Fuel Tank Drain Port | Quick Ball Valve |
| Work Light | DC24V-LED Work Light | Protection System | Hydraulic Pressure Protection, Voltage Protection, Motor Phase Loss And Phase Sequence Protection, Motor Overheat Protection |
| Working Length（mm） | 6000 | Dimensions（mm） | 6800*1500*900 |
| Machine Weight（t） | ≈2.4 | ||
| Highlight | Fully Automatic Punching And Cutting Machine,Channel Steel Punching And Cutting Machine,Profiles laser punching machine |
||
Product Description

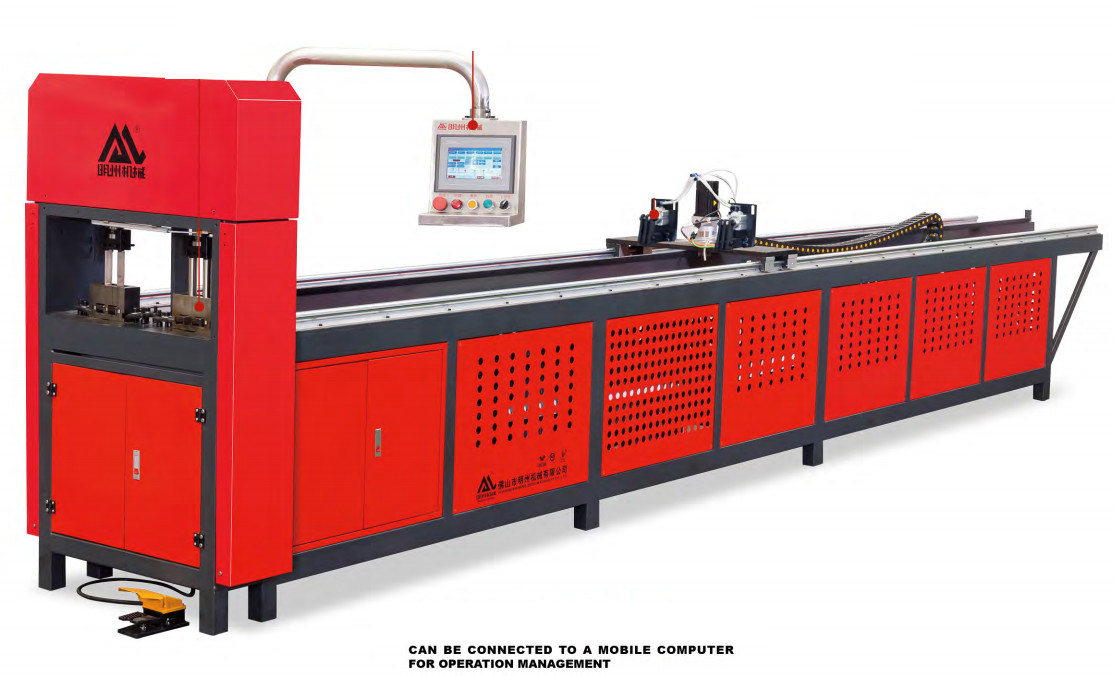

MZ-125ACZ Fully Automatic CNC Punching Machine
Double tube film, 1-4 tubes can be processed at the same time on the left and right, 1 person can process 4 tubes, which is more efficient. The mold quick-install positioning key slot makes mold installation faster and easier.
300-degree rotating man-machine operation table allows you to operate smoothly
Inlet and outlet clamps single tube, double tube, large tube, small tube. Convenient, easy and fast adjustment
Can be connected to the mobile phone and computer for operation and management
