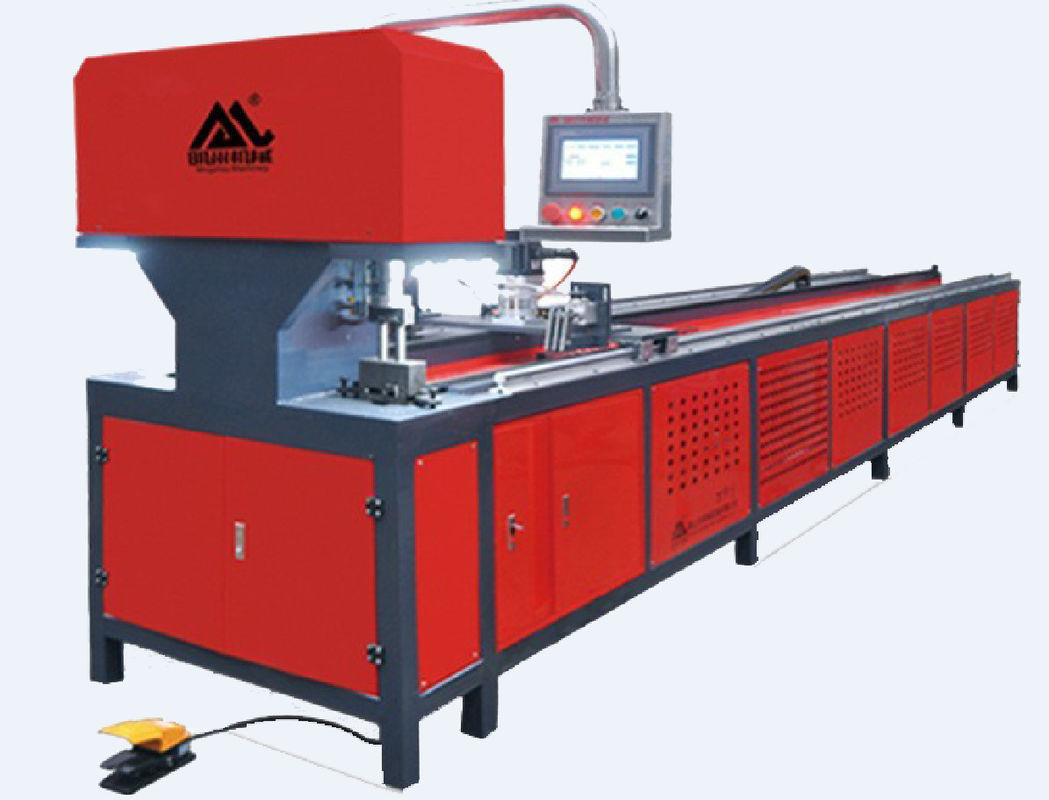

C Shaped Steel C Type Shelf Pipe Punching Machine Channel Steel

C Shaped Steel C Type Shelf Pipe Punching Machine Channel Steel

Brand Name: Mingzhou
Model Number: MZ-125AC2
MOQ: 1PC
Price: USD1000-10000
Payment Terms: T/T
Supply Ability: 1000PCS PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Hydraulic Motor Power（kw）:
11
Cylinder Specifications （mm）:
125*100
Punching Stroke（mm）:
100
Punching Force（kn）:
196
Maximum Pressure（Mpa）:
16
Stamping Material:
Aluminum, Iron, Stainless Steel, Copper, Pvc
Stamping Profiles:
Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Special-shaped Materials
Square Tube（mm）:
Max Half Hole 60*60
Full Hole（mm）:
60*60
Angle Iron（mm）:
L 60*60
Rectangular Tube（mm）:
Max50*100
Punching Size And Thickness（mm）:
0-3.0
Power Supply（v）:
380v-50Hz
Control Voltage（v）:
DC24V
Cooling Method:
Forced Air Cooling Machine
Control System Type:
Closed-loop Control System
Punching Frequency:
0.8-2.0 Seconds/time
Servo System:
Schneider Drive Servo 1w
Operating System:
Human-machine Touch Screen Operation
Touchscreen:
Kunlun Tongtai 7 Inches
Planetary Reducer:
Straight Tooth PLF120-10
Rail Guide:
Linear Guide SBR30-6250
Fuel Tank Capacity（L）:
200
Fuel Tank Inspection Port:
Have
Fuel Tank Drain Port:
Quick Ball Valve
Work Light:
DC24V-LED
Working Length（mm）:
6000
Dimensions（mm）:
6800*1500*900
Machine Weight（t）:
1.9
Packaging Details:
Pallet, wooden case, wooden frame
Supply Ability:
1000PCS PER MONTH
Highlight:

C Shaped Steel pipe punching machine

,

Shelf pipe punching machine

,

Channel Steel punching cutting

Product Description

Optional dual servos, independent left and right working, more efficient production

C-type opening structure, convenient and quick disassembly of molds

Shelves, display racks, double tube molds, more efficient punching

One or more pipes can be punched at a time

Any hole distance can be automatically punched on the same pipe
