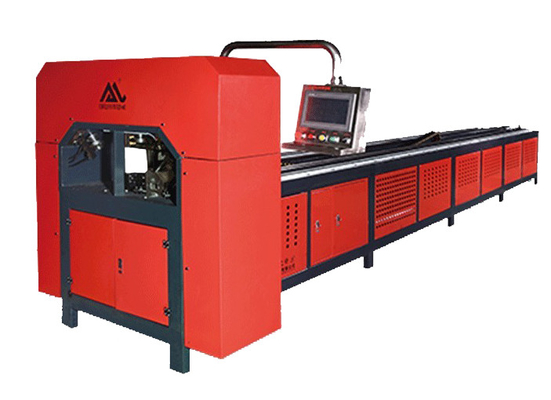

Angle Iron Punching And Cutting Machine Punching And Breaking Machine
| Place of Origin | China |
|---|---|
| Brand Name | Mingzhou |
| Certification | ISO |
| Model Number | MZ-ROB80PV4-1-FLAV-CKCD |
| Minimum Order Quantity | 1PC |
| Price | USD1000-10000 |
| Packaging Details | Pallet, wooden case, wooden frame |
| Delivery Time | 5-15 DAYS |
| Payment Terms | T/T,Western Union,MoneyGram,L/C |
| Supply Ability | 1000PCS PER MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hydraulic Motor Power（kw） | 7.5 | Break Cylinder Stroke | 80*100 |
|---|---|---|---|
| Cylinder Specifications | 100 | Punching Stroke（MM） | 100 |
| Punching Force（Kn） | 80 | The Biggest Pressure（Mpa） | 16 |
| Stamping Material | Aluminum, Iron, Stainless Steel, Copper, Pvc | Stamping Object | Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Special-shaped Materials |
| Punching Profile Size（mm） | MAX Half Hole60*60 Full Hole50*50 Angle Iron: L60*60 Rectangular Tube: Max50*100 | Square Tube Size And Thickness（mm） | 0-1.0 |
| Maximum Allowable Height Of The Mold | 290 | Power Supply（V） | 380v-50Hz |
| Control Voltage（V） | DC24V | Cooling Method | Air Cooler |
| Control System Type | Closed-loop Control System | Punching Frequency | 0.3-1.5 Seconds/time |
| Servo System | Donlim Servo750w（Optional French Schneider Servo） | Touchscreen | Kunlun Tongtai 7 Inches (optional 10 Inches) |
| Planetary Reducer | Double-supported Straight Teeth (optional Double-supported Helical Teeth) 90-7 (or 90-8) | Rail Guide | Linear Guides SBR30-6250 |
| Fuel Tank Capacity（L） | 100 | Fuel Tank Inspection Port | Have |
| Fuel Tank Drain Port | Quick Ball Valve | Work Light | DC24V-LED |
| Protection System | Hydraulic Pressure Protection, Voltage Protection, Motor Phase Loss And Phase Sequence Protection, Motor Overheat Protection | Working Length（mm） | 0-7000 |
| Dimensions（mm） | 7080*1300*1700 | Machine Weight（t） | 2 |
| Highlight | Angle Iron Punching And Cutting Machine,Punching And Cutting Machine 380v,Angle Iron punching and breaking machine |
||
Product Description
It effectively combines the two processes of cutting and then punching into one, reducing the cutting process, reducing secondary handling, and reducing turnover space. It also ensures the accuracy of the cutting and punching dimensions of the product; effectively reduces the labor intensity of workers, improves production efficiency, and enhances the competitiveness of the enterprise.
Main function: 1, can be punched at the same time, one machine can be equivalent to two machines.2, one person can operate, the operation is simple and easy to learn, save time and reduce labor.3, can flush different sizes of the profile pipe, arbitrary punching through the length of the pipe.
