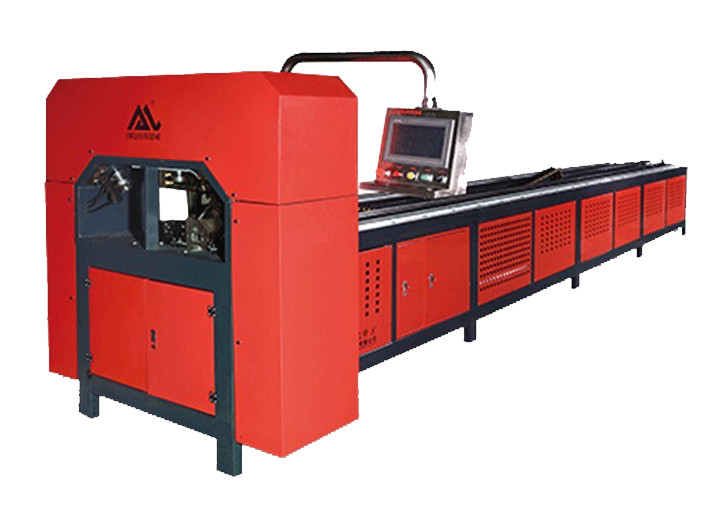

Stainless Steel Copper PVC Punching And Cutting Machine Angle Iron

Name: Stainless Steel Copper PVC Punching And Cutting Machine Angle Iron
Brand: Foshan Mingzhou Intelligent Equipment Co., Ltd
SKU: MZ-ROB125PV4-1-FLAC-CKCD
Price: 5,050.00 USD
Availability: InStock

Brand Name:	Mingzhou
Model Number:	MZ-ROB125PV4-1-FLAC-CKCD
MOQ:	1PC
Price:	USD100-10000
Payment Terms:	T/T,Western Union,MoneyGram,L/C
Supply Ability:	1000PCS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Hydraulic Motor Power（kw）:

Break Cylinder Stroke:

125*100

Cylinder Specifications:

150

Punching Stroke（MM）:

100

Punching Force（Kn）:

200

The Biggest Pressure（Mpa）:

Stamping Material:

Aluminum, Iron, Stainless Steel, Copper, Pvc

Stamping Object:

Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Special-shaped Materials

Punching Profile Size（mm）:

MAX Half Hole60*60 Full Hole50*50 Angle Iron: L60*60 Rectangular Tube: Max50*100

Square Tube Size And Thickness（mm）:

0-3.0

Maximum Allowable Height Of The Mold:

290

Power Supply（V）:

380v-50Hz

Control Voltage（V）:

DC24V

Cooling Method:

Air Cooler

Control System Type:

Closed-loop Control System

Punching Frequency:

0.8-2.0 Seconds/time

Servo System:

Donlim Servo750w（Optional French Schneider Servo）

Touchscreen:

Kunlun Tongtai 7 Inches (optional 10 Inches)

Planetary Reducer:

Double Support Helical Gear 120-10

Rail Guide:

Linear Guides SBR30-6250

Fuel Tank Capacity（L）:

180

Fuel Tank Inspection Port:

Have

Fuel Tank Drain Port:

Quick Ball Valve

Work Light:

DC24V-LED

Protection System:

Hydraulic Pressure Protection, Voltage Protection, Motor Phase Loss And Phase Sequence Protection, Motor Overheat Protection

Working Length（mm）:

0-7000

Dimensions（mm）:

7080*1500*1800

Machine Weight（t）:

2.8

Packaging Details:

Pallet, wooden case, wooden frame

Supply Ability:

1000PCS PER MONTH

Highlight:

Copper Punching And Cutting Machine

PVC Punching And Cutting Machine

Angle Iron cnc punching machine

Product Description

ROB125PV4 Angle Iron Punching And Breaking Machine

Main function the main functon 1, can be punched at the same time, one machine can be equivalent to two machines.2, one person can operate, the operation is simple and easy to learn, save time and reduce labor.3, can flush different sizes of the profile pipe, arbitrary punching through the length of the pipe.

It effectively combines the two processes of cutting and then punching into one, reducing the cutting process, reducing secondary handling, and reducing turnover space. It also ensures the accuracy of the cutting and punching dimensions of the product; effectively reduces the labor intensity of workers, improves production efficiency, and enhances the competitiveness of the enterprise.
