products details

Home Products

Laser Pipe Cutting Machine

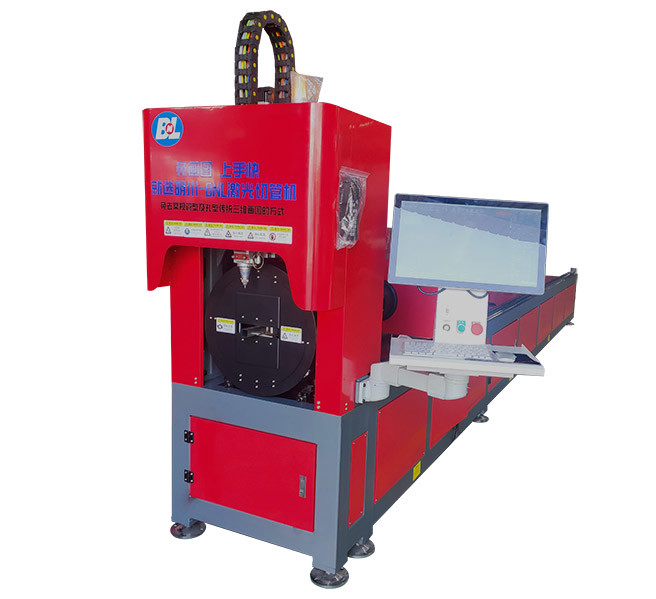

Multi Axis Tube Laser Cutting Machine Horizontal Elliptical Tube Channel Steel

Name: Multi Axis Tube Laser Cutting Machine Horizontal Elliptical Tube Channel Steel
Brand: Foshan Mingzhou Intelligent Equipment Co., Ltd
SKU: BNL16
Price: 20,000.00 USD
Availability: InStock

Brand Name:	MINGZHOU
Model Number:	BNL16
MOQ:	1pcs
Price:	usd10000-30000
Payment Terms:	T/T,Western Union,MoneyGram,L/C
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO quality system certificate

Model:

BNL16

Laser Power (W):

1500-6000W

Round Pipe:

φ10mm-φ160mm (in Accordance With GB/T17395-1998)

Rectangular Tube:

Circumcircle≤φ160mm(in Accordance With National Standard GB/T6728-1986）

Special-shaped Pipe:

Circumcircle≤φ160mm

Weight Of Single Pipe:

Maximum Load Of Both Chucks Together 140kg

Repeatpositioning Accuracy (mm):

±0.02

Pipe Length Range:

≈6250

Machine Size（mm）:

L*W*H：8856*1365*2172

Machine Weight （T）:

≈3.5

Maximum Acceleration（G）:

≈1.3

Tailings Length:

≈80

Packaging Details:

Pallet/Wooden case

Supply Ability:

1000pcs

Highlight:

Multi Axis Laser Pipe Cutting Machine

Horizontal Laser Pipe Cutting Machine

Channel Steel tube laser cutting machine

Product Description

Drawing-free pipe cutting system: ordinary masters can quickly get started, eliminating the production method of drawing traditional three-dimensional drawings for conventional pipes and hole types.

Bus control system: The entire series adopts a bus control system, multi-axis linkage, to achieve frog jumping, flying cutting and other processes, and the efficiency is about 30% higher than the traditional pulse system.

Full-stroke chuck: automatic centering, multi-material and multi-shape pipes do not need to change the fixture.

The rear chuck automatically blows air, the claws are not easy to get stuck, and the pipe wall is cleaner.

Left/right model customization: more suitable for the placement of the factory, convenient for the master to operate and save floor space, saving manpower and space.

Many cutting types: square tubes, round tubes, elliptical tubes, channel steels, angle steels, I-beams and other pipes.

The operation control screen can be freely rotated at multiple angles, convenient for free control at multiple angles.
