Aluminum Anti Theft Window Tube Metal Tube Laser Cutting Machine Horizontal
| Place of Origin | CHINA |
|---|---|
| Brand Name | MINGZHOU |
| Certification | ISO9001 |
| Model Number | BNL230-Y |
| Minimum Order Quantity | 1 set |
| Price | USD10000-30000 |
| Packaging Details | Pallet, Wooden case |
| Delivery Time | 5-15 days |
| Payment Terms | T/T,Western Union,MoneyGram,L/C |
| Supply Ability | 1000 SETS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | BNL230-Y | Laser Power (W) | 1500-1600 |
|---|---|---|---|
| Round Pipe | φ15mm-φ230mm (in Accordance With GB/T17395-1998) | Rectangular Tube | Circumcircle≤φ230mm(in Accordance With National Standard GB/T6728-1986） |
| Special-shaped Pipe | Circumcircle≤φ230mm | Weight Of Single Pipe | Maximum Load Of Both Chucks Together 3100kg |
| Repeatpositioning Accuracy (mm) | ±0.02 | Pipe Length Range | ≈6250 |
| Machine Size（mm） | L*W*H：8856*1365*2172 | Machine Weight （T） | ≈3.5 |
| Maximum Acceleration（G） | ≈1.0 | Tailings Length | ≈100 |
| Highlight | 1600w metal tube laser cutting machine,Horizontal metal tube laser cutting machine,1500w pipe cutting laser machine |
||
Product Description

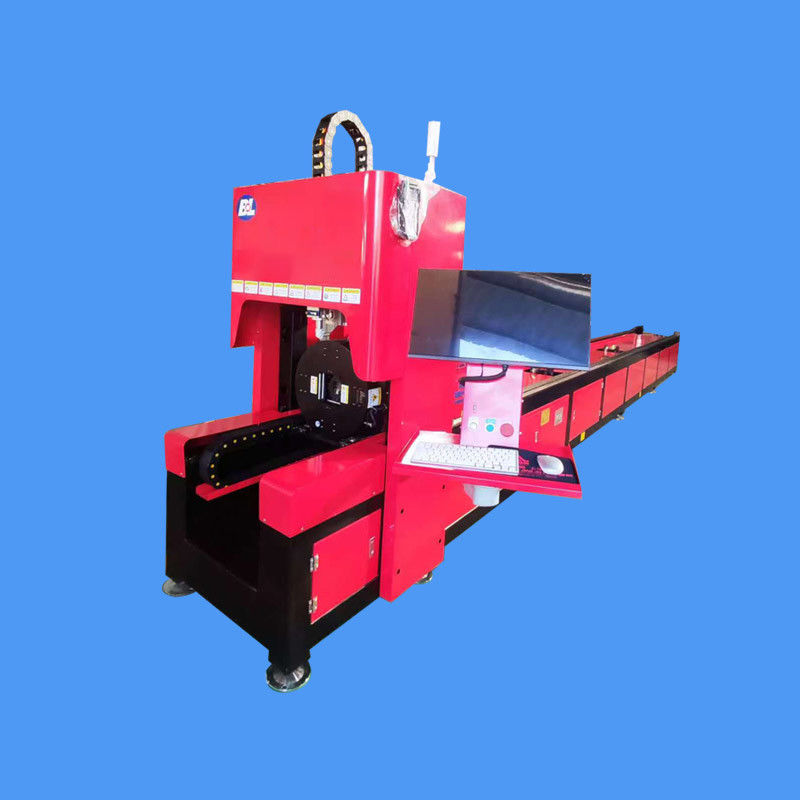

Aluminum Anti-Theft Window Tube Cutting Bnl230-Y High-Speed 3d Laser Pipe Cutting Machine (Horizontal)
FEATURES:
Drawing-free pipe cutting system: ordinary masters can quickly get started, eliminating the production method of drawing traditional three-dimensional drawings for conventional pipes and hole types.
Bus control system: The entire series adopts a bus control system, multi-axis linkage, to achieve frog jumping, flying cutting and other processes, and the efficiency is about 30% higher than the traditional pulse system.
Full-stroke chuck: automatic centering, multi-material and multi-shape pipes do not need to change the fixture.
The rear chuck automatically blows air, the claws are not easy to get stuck, and the pipe wall is cleaner.
Left/right model customization: more suitable for the placement of the factory, convenient for the master to operate and save floor space, saving manpower and space.
Many cutting types: square tubes, round tubes, elliptical tubes, channel steels, angle steels, I-beams and other pipes.
The operation control screen can be freely rotated at multiple angles, convenient for free control at multiple angles
Technical Parameter:
| Model | BNL12 | BNL16 | BNL23 |
| Laser power(W) | 1500-6000 | 1500-6000 | 1500-6000 |
| Processing range | Round pipe: φ8mm-φ120mm | Round pipe:φ10mm-φ160mm | Round pipe:φ15mm-φ230mm |
| Rectangular tube: circumcircle ≤ φ120mm (in accordance with national standard GB/T6728-1986) | Rectangular tube:circumcircle ≤φ160mm(in accordance with national standard GB/T6728-1986) | Rectangular tube:circumcircle ≤φ230mm(in accordance with national standard GB/T6728-1986) | |
| Special-shaped pipe: circumcircle ≤ φ120mm (please consult our technical personnel for details) | Special-shaped pipe: circumcircle ≤ φ160mm (please consult our technical personnel for details) | Special-shaped pipe: circumcircle ≤ φ230mm (please consult our technical personnel for details) | |
| The quality of pipes shall meet the requirements of GB/T17395-1998. For special-shaped pipes, please consult the technical personnel of our company. | |||
| Weight of single pipe | Maximum load of both chucks together 100 kg | Maximum load of both chucks together 140 kg | Maximum load of both chucks together 300 kg |
| Repeatpositioning accuracy | ±0.02 | ±0.02 | ±0.05 |
| Pipe length range(mm) | ≈6250 | ≈6250 | ≈6250 |
| Machine size(mm) | L*W*H:8856*1365*2172 | L*W*H:8856*1365*2172 | L*W*H:8856*1365*2172 |
| Machine weight(T) | ≈3.5 | ≈3.5 | ≈3.5 |
| Maximum acceleration (G) | ≈1.6 | ≈1.3 | ≈1.0 |
| Tailings length(mm) | ≈60 | ≈80 | ≈100 |
