Smartly Connected Punching And Cutting Machine For Automatic Punching Machine

Name: Smartly Connected Punching And Cutting Machine For Automatic Punching Machine
Brand: Foshan Mingzhou Intelligent Equipment Co., Ltd
SKU: MZ-100ACZ
Price: 5,500.00 USD
Availability: InStock

Brand Name:	mingzhou
Model Number:	MZ-100ACZ
MOQ:	1 pc
Price:	USD1000-10000
Payment Terms:	T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Hydraulic Motor Power（kw）:

Cylinder Specifications（mm）:

100*100

Punching Stroke（mm）:

100

Punching Force（kn）:

125

Maximum Pressure（mpa）:

Stamping Material:

Aluminum, Iron, Stainless Steel, Copper, Pvc

Stamping Profiles （mm））:

Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Profiles

Punching Profile Size （mm））:

Square Tube: Max Half Hole 60×60; Full Hole: 50×50; Angle Iron: L60×60; Rectangular Tube: Max50×100

Punching Size And Thickness（mm）:

0-2.0

Power Supply （v）:

380v-50Hz

Control Voltage（V）:

DC24V

Cooling Method:

Forced Air Cooling Machine

Control System Type:

Closed-loop Control System

Punching Frequency:

0.3-1.5 Seconds/time

Servo System:

Donlim Servo 750w System

Operating System:

Human-machine Touch Screen Operation

Touchscreen:

Kunlun Tongtai 7 Inches

Planetary Reducer:

Straight Teeth 80-10

Rail Guide:

Linear Guides SBR30-6250

Fuel Tank Capacity（L）:

180

Fuel Tank Inspection Port:

Have

Fuel Tank Drain Port:

Quick Ball Valve

Work Light:

DC24V-LED Work Light

Protection System:

Hydraulic Pressure Protection, Voltage Protection, Motor Phase Loss And Phase Sequence Protection, Motor Overheat Protection

Working Length（mm）:

6000

Dimensions（mm）:

6800*1500*900

Machine Weight（t）:

≈2.1

Packaging Details:

Wooden case, wooden frame, carton

Supply Ability:

1000pcs

Highlight:

Smartly Connected Punching And Cutting Machine

380v Punching And Cutting Machine

11kw angle cutting and punching machine

Product Description

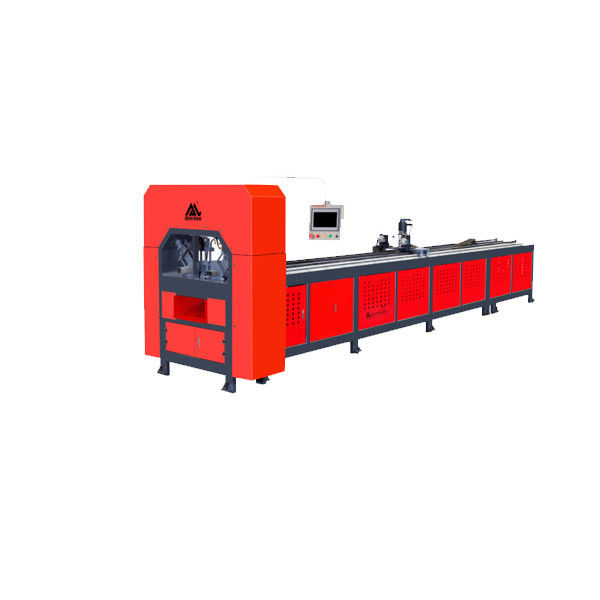

MZ-100ACZ Smartly Connected Punching And Cutting Machine For Automatic Punching Machine

FEATURES:

Double tube film, 1-4 tubes can be processed at the same time on the left and right, 1 person can process 4 tubes, which is more efficient. The mold quick-install positioning key slot makes mold installation faster and easier.

300-degree rotating man-machine operation table allows you to operate smoothly

Inlet and outlet clamps single tube, double tube, large tube, small tube. Convenient, easy and fast adjustment

Can be connected to the mobile phone and computer for operation and management
