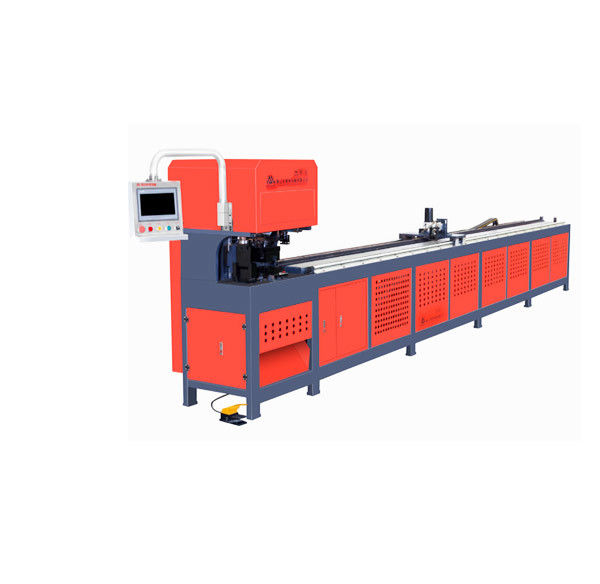

380V Angle Tube Cutting And Punching Machine For Multiple Pipes And Double Tube

Name: 380V Angle Tube Cutting And Punching Machine For Multiple Pipes And Double Tube
Brand: Foshan Mingzhou Intelligent Equipment Co., Ltd
SKU: MZ-125AC2
Price: 5,500.00 USD
Availability: InStock

Brand Name:	Mingzhou
Model Number:	MZ-125AC2
MOQ:	1PC
Price:	USD1000-10000
Payment Terms:	T/T
Supply Ability:	1000PCS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Hydraulic Motor Power（kw）:

Cylinder Specifications （mm）:

125*100

Punching Stroke（mm）:

100

Punching Force（kn）:

196

Maximum Pressure（Mpa）:

Stamping Material:

Aluminum, Iron, Stainless Steel, Copper, Pvc

Stamping Profiles:

Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Special-shaped Materials

Square Tube（mm）:

Max Half Hole 60*60

Full Hole（mm）:

60*60

Angle Iron（mm）:

L 60*60

Rectangular Tube（mm）:

Max50*100

Punching Size And Thickness（mm）:

0-3.0

Power Supply（v）:

380v-50Hz

Control Voltage（v）:

DC24V

Cooling Method:

Forced Air Cooling Machine

Control System Type:

Closed-loop Control System

Punching Frequency:

0.8-2.0 Seconds/time

Servo System:

Schneider Drive Servo 1w

Operating System:

Human-machine Touch Screen Operation

Touchscreen:

Kunlun Tongtai 7 Inches

Planetary Reducer:

Straight Tooth PLF120-10

Rail Guide:

Linear Guide SBR30-6250

Fuel Tank Capacity（L）:

200

Fuel Tank Inspection Port:

Have

Fuel Tank Drain Port:

Quick Ball Valve

Work Light:

DC24V-LED

Working Length（mm）:

6000

Dimensions（mm）:

6800*1500*900

Machine Weight（t）:

1.9

Packaging Details:

Pallet, wooden case, wooden frame

Supply Ability:

1000PCS PER MONTH

Highlight:

380V cutting and punching machine

Angle Tube cutting and punching machine

Double Tube cutting punching machine

Product Description

Angle Punching Customizable Hole Distance for Multiple Pipes and Double Tube of Punching And Cutting Machine

FEATURES:

Can punch 1-2 kinds of hold as the same time, can punch round hole, square hole, big hole or small hole.

Can punch Angle tube.

Optional dual servos, independent left and right working, more efficient production

C-type opening structure, convenient and quick disassembly of molds

Shelves, display racks, double tube molds, more efficient punching

One or more pipes can be punched at a time

Any hole distance can be automatically punched on the same pipe
