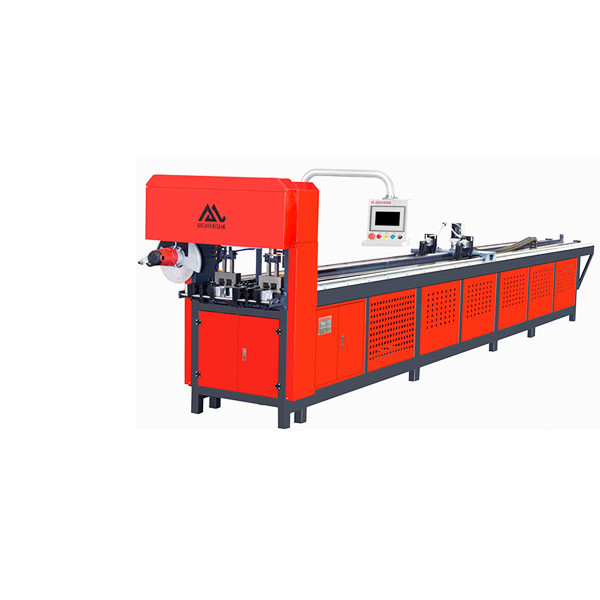

Bar Steel Automatic Punching And Cutting Machine For Optimal Performance

Name: Bar Steel Automatic Punching And Cutting Machine For Optimal Performance
Brand: Foshan Mingzhou Intelligent Equipment Co., Ltd
SKU: MZ-125AC2-Q2
Price: 5,500.00 USD
Availability: InStock

Brand Name:	MINGZHOU
Model Number:	MZ-125AC2-Q2
MOQ:	1pc
Price:	USD1000-10000
Payment Terms:	T/T,Western Union,MoneyGram,L/C
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Hydraulic Motor Power (kw):

Cutting Motor Power (kw):

Standard 2.2kw-carbon Brush Type-220v (optional 380V High-speed Cutting Motor And Water-cooled Low-speed Cutting)

Cylinder Specifications (mm):

Engineering High-pressure Cylinder ROB125×100

Punching Stroke (mm):

100

Punching Force (kn):

196

Rated Pressure(Mpa):

12(Max:16)

Stamping Materials And Objects:

Materials: Aluminum, Iron, Stainless Steel, Copper, PVC; Profiles: Pipes, Angle Irons, C-shaped Steel, Channel Steel, Other Special Profiles

Punching Profile Size (mm):

Square Tube: Max Half Hole 60×60; Full Hole: 50×50; Angle Iron: L60×60; Rectangular Tube: Max50×100

Punching Size And Thickness (mm):

0~3.0

Cutting Saw Blade Specifications:

Standard 300×2.5×25.4 Grinding Wheel Saw Blade Or 330 Alloy Magic Saw Blade/330×120T Aluminum Cutting Saw Blade

Power Supply (V):

380v-50Hz

Control Voltage(V):

DC24V

Cooling Method:

Forced Air Cooler 150L

Control System Type:

Closed-loop Control System

Punching Frequency:

0.8~2.0 Seconds/time

Operating System:

Human-machine Touch Screen Operation

Touchscreen:

Kunlun Tongtai 7 Inches

Planetary Reducer:

Double Support Helical Gear 120-10

Guide:

Linear Guide SBR30-6250

Fuel Tank Capacity (L):

210

Fuel Tank Inspection Port:

Have

Fuel Tank Drain Port:

Quick Ball Valve

Work Light:

DC24V-LED Work Light

Protection System:

Hydraulic Pressure Protection, Voltage Protection, Motor Phase Loss And Phase Sequence Protection, Motor Overheat Protection

Working Length(mm):

0~6000

Dimensions (mm):

7300×1500×1300

Machine Weight (T):

2.5

Intellectual Property:

Utility Model Patent, Design Patent

Packaging Details:

Carton, pallet, wooden case, wooden frame

Supply Ability:

1000pcs per month

Highlight:

Automatic Punching And Cutting Machine

Bar Steel Punching And Cutting Machine

11kw automatic punching machine

Product Description

MZ-125AC2-QG Bar Steel Automatic Punching Machine For Optimal Performance

FEATURES:

This fully automatic CNC punching and cutting machine was developed by the company in 2013 based on the original automatic CNC punching machine after more than a year of research and development. It effectively combines the original two processes of cutting and then punching into one, reducing the cutting process, reducing the secondary handling, and reducing the turnover site. It also ensures the accuracy of the product cutting and punching processing dimensions; effectively reduces the labor intensity of workers, improves production efficiency, and enhances the competitiveness of the company.

Cut the pneumatic front clip, smooth and powerful, stable cutting. Double pipe mold, left and right processing can be 1-4 tubes at the same time.1 person tube 4 tube, higher efficiency, mold fast installation of positioning keyway, mold installation is faster, more relaxed.

300 degrees rotating man-machine table, let you operate. Single pipe / double pipe, large pipe / small pipe for easy and quick adjustment

Main functions:

1.Basic system parameter setting: set the left and right two working mode, statistical efficiency workload, set servo motor related parameters.2, manual operation system: manually start the stop motor, servo forward and backward, feeding fixture, cutting motor and other operations.3. Automatic punching system: automatic calculation of equal hole distance, not equal hole distance, free combination of unequal length hole punching and cutting, can arbitrarily control the full hole / half hole.
