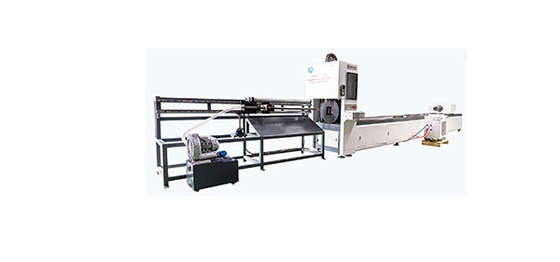

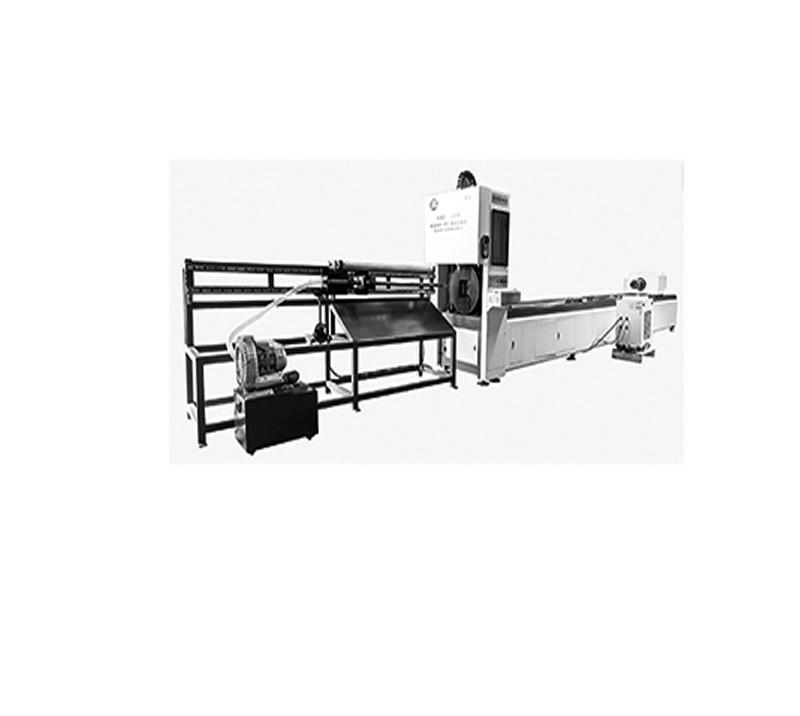

Round Pipe CNC Pipe Laser Cutting Machine With Slag Extraction System

Round Pipe CNC Pipe Laser Cutting Machine With Slag Extraction System

Brand Name: MINGZHOU
Model Number: N15
MOQ: 1pc
Price: USD10000-30000
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 sets
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Document:
N Serials Laser cutters Tec...14.pdf
Model:
N15
Laser Power (W):
1500-1600
Round Pipe:
φ10mm-φ160mm (in Accordance With GB/T17395-1998)
Rectangular Tube:
Circumcircle≤φ160mm(in Accordance With National Standard GB/T6728-1986）
Special-shaped Pipe:
Circumcircle≤φ120mm
Weight Of Single Pipe:
Maximum Load Of Both Chucks Together 140kg
Repeatpositioning Accuracy (mm):
±0.02
Pipe Length Range:
≈6250
Machine Size（mm）:
L*W*H：8856*1365*2172
Machine Weight （T）:
≈3.5
Maximum Acceleration（G）:
≈1.3
Tailings Length:
≈80
Packaging Details:
Pallet, wooden case
Supply Ability:
1000 sets
Highlight:

Round Pipe cnc pipe laser cutting machine

,

Rectangular tube cnc pipe laser cutting machine

,

1500w cnc tube laser cutting machine

Product Description

N15 Upgrade Your Pipe Cutting Process with Slag Extraction System CNC tube laser cutting machine



FEATURES:

Drawing-free pipe cutting system: ordinary masters can quickly get started, eliminating the production method of drawing traditional three-dimensional drawings for conventional pipes and hole types.



Bus control system: The entire series adopts a bus control system, multi-axis linkage, to achieve frog jumping, flying cutting and other processes, and the efficiency is about 30% higher than the traditional pulse system.



Full-stroke chuck: automatic centering, multi-material and multi-shape pipes do not need to change the fixture.



The rear chuck automatically blows air, the claws are not easy to get stuck, and the pipe wall is cleaner.



Left/right model customization: more suitable for the placement of the factory, convenient for the master to operate and save floor space, saving manpower and space.



Many cutting types: square tubes, round tubes, elliptical tubes, channel steels, angle steels, I-beams and other pipes.



This equipment can perform efficient three-dimensional cutting of various types of small and medium-sized pipes, a star product in the hardware and furniture industry!



Technical Parameter:



Model N12 N16 N23
Laser power(W) 1500-6000 1500-6000 1500-6000
Processing range Round pipe: φ8mm-φ120mm Round pipe:φ10mm-φ160mm Round pipe:φ15mm-φ230mm
Rectangular tube: circumcircle ≤ φ120mm Rectangular tube:circumcircle≤φ160mm Rectangular tube:circumcircle≤φ230mm
Exform tube: External round    ≤φ120mm Exform tube: External round  ≤φ160mm Exform tube: External round  ≤φ230mm
The quality of pipes shall meet the requirements of GB/T17395-1998. For special-shaped pipes, please consult the technical personnel of our company.
Weight of single pipe Maximum load of both chucks together 100 kg Maximum load of both chucks together 140 kg Maximum load of both chucks together 300 kg
Repeatpositioning accuracy ±0.02 ±0.02 ±0.05
Pipe length range(mm) ≈6250 ≈6250 ≈6250
Machine size(mm) L*W*H:8856*1365*2172 L*W*H:8856*1365*2172 L*W*H: 8856*1365*2172
 Machine weight(T) ≈3.5 ≈3.5 ≈3.5
Maximum acceleration (G) ≈1.6 ≈1.3 ≈1.0
Tailings length(mm) ≈60 ≈80 ≈100
