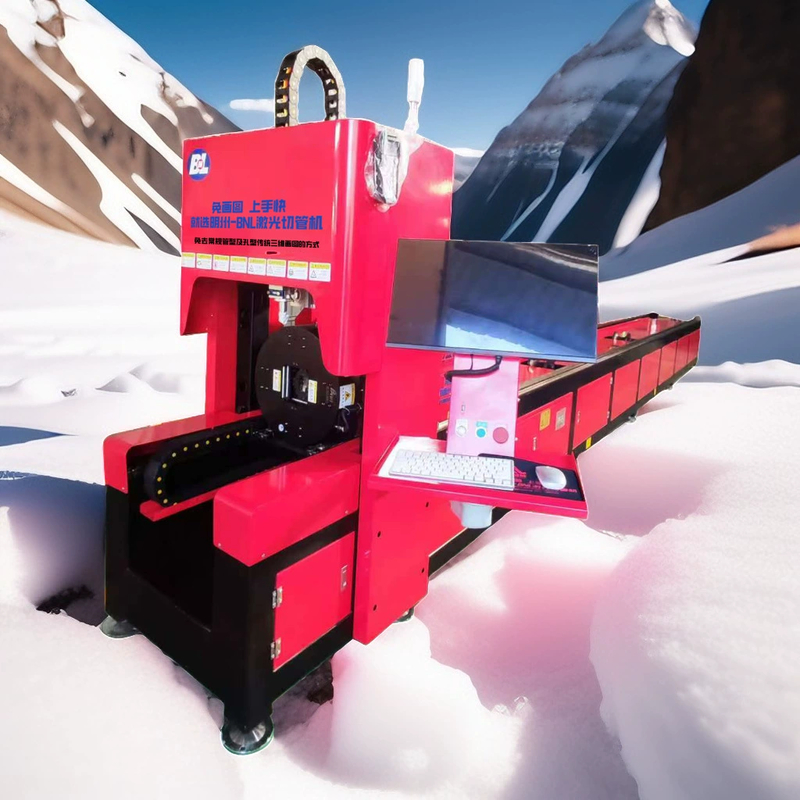

1500W-6000W Fiber Laser Pipe Cutting Machine for 8-160mm Tubes

Name: 1500W-6000W Fiber Laser Pipe Cutting Machine for 8-160mm Tubes
Brand: Foshan Mingzhou Intelligent Equipment Co., Ltd
SKU: BNL160-Y
Price: 20,000.00 USD
Availability: InStock

Brand Name:	Mingzhou
Model Number:	BNL160-Y
MOQ:	1 Piece
Price:	USD10000~30000
Payment Terms:	By T/T
Supply Ability:	1000 Pcs/m

Detail Information

Product Description

Detail Information

Certification:

ISO, CE

Continous Working Time:

24 Hours

Substance:

Fiber Laser

Tailings Length:

≈0-45mm

Laser Power:

1500W~6000W

Irregular Pipe:

Circumferential Circle≤phi160mm

Product Type:

Industrial Machinery

Cutting Diameter:

8-160mm

Laser Head:

Ospri Or Hans

Packaging Details:

Wooden Case, Pallet, Carton, Plastic Paper

Supply Ability:

1000 Pcs/m

Highlight:

1500W fiber laser pipe cutter

6000W tube cutting machine

laser pipe cutter for 8-160mm tubes

Product Description

Precision Laser Pipe Cutting Machine

Voltage: 220V/380V/415V | Irregular Pipe Circumferential Circle ≤φ160mm

The Laser Pipe Cutting Machine is a cutting-edge industrial equipment designed for precision cutting of tubes and pipes. Featuring advanced technology and high-performance capabilities, this machine delivers accurate and efficient pipe cutting for demanding industrial applications.

Key Features

Cutting Diameter: 8-160mm
Worktable Load: ≤25kg (at center of flange)
Continuous Operation: 24 hours
Voltage Options: 220V/380V/415V
Laser Generator Options: BWT, RECI, MAX, or RAYCUS
Laser Head Options: Ospri or Hans
Water Cooling System: Maintains optimal operating temperatures
Cutting Accuracy: ±20μm precision

Technical Specifications

Parameter	Specification
Tailings Length	≈0-45mm
Laser Power	1500W~6000W
Maximum Acceleration	1.5G
Cutting Accuracy	±20μm
Irregular Pipe Capacity	Circumferential Circle ≤φ160mm

Industrial Applications

Industrial Manufacturing: Precision cutting of various pipe and tube materials
Construction Sector: High-speed cutting of structural tubes and pipes
Automotive Industry: Accurate cutting of exhaust pipes and chassis components
Metal Fabrication: Continuous operation for high-volume production

Product Details

The Mingzhou Laser Pipe Cutting Machine (Model: BNL160-Y) is ISO and CE certified CNC equipment manufactured in China. With a minimum order quantity of 1 unit and delivery within 15 days, this machine offers exceptional value for industrial cutting applications.

1:The front Chuck can be used for movable cutting, and the tail material is ultra-short to about 35MM or "0" tail material design, which can greatly improve the utilization rate of materials and save materials.

2. Bus control system: The whole series adopts bus control system, multi-axis linkage, to achieve leapfrog, fly-cutting and other processes, and the efficiency is improved by about 30% compared with the traditional pulse system.

3. Full travel chuck: automatic center, multi-material, multi-shape pipe need not replace the fixture.

4. Rear Chuck automatically blow air, the claws are not easy to jam, and the pipe wall is clean.
