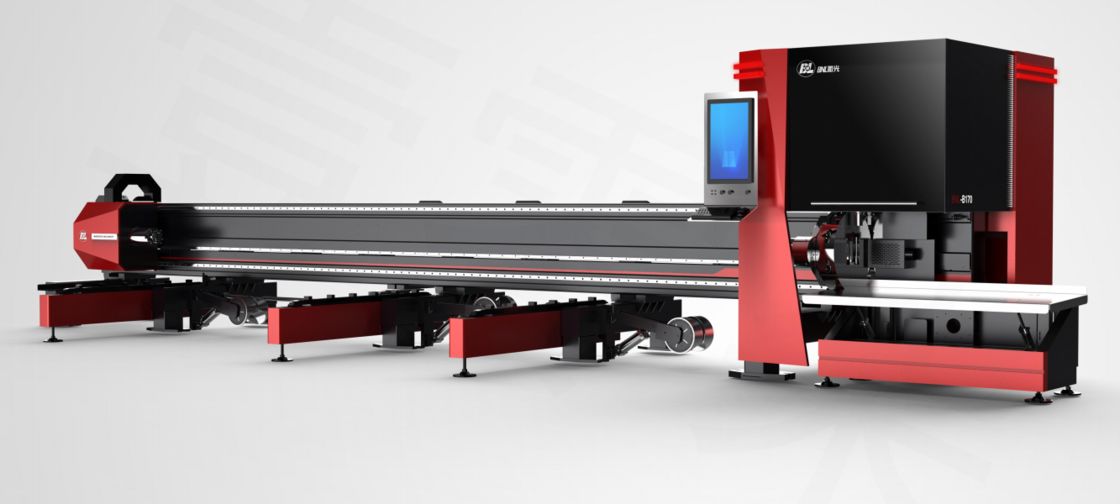

High-Power Laser Tube Cutter - Fast Cutting Thick-Wall Stainless Tubes for Chemical Plant Piping

High-Power Laser Tube Cutter - Fast Cutting Thick-Wall Stainless Tubes for Chemical Plant Piping

Brand Name: Mingzhou
Model Number: B170
MOQ: 1PC
Price: USD10000-30000
Payment Terms: BY T/T,L/C,ETC.
Supply Ability: 1000PCS /M
Detail Information
Product Description
Detail Information
Certification:
ISO, CE
Round Pipe:
φ8mm-φ230mm
Cutting Shapes::
Round Hole, Square Hole, Plum Blossom Hole, Louver Hole, Diagonal Cut, Arc Shape, Bevel 45 Degree Angle Cutting.
Feeding Method:
Semi-Automatic Feeding
Cutting Speed:
100-800mm/min
Cutting Head:
Fiber Laser Head
Cutting Material::
Stainless Steel, Aluminum, Copper, Flat Iron, Nickel Titanium Alloy, Titanium, High Temperature Alloy, Lithium, Magnesium, And Other Metal Materials
Control System:
PLC
Power Source:
Electric
Packaging Details:
PP PAPER, CARTON, WOODEN CASE, PALLET
Supply Ability:
1000PCS /M
Highlight:

high-power laser tube cutter

,

stainless steel tube cutting machine

,

chemical plant pipe cutter

Product Description
High-Power Laser Tube Cutter - Fast Cutting Thick-Wall Stainless Tubes for Chemical Plant Piping
The CNC Aluminum Cutting Machine is a versatile and efficient tool designed for precise cutting of aluminum tubes. With a cutting speed ranging from 100 to 800mm/min, this machine ensures quick and accurate results, making it ideal for various industrial applications.
Key Features
  • Product Name: Aluminum Tube Cutting Machine
  • Power Source: Electric
  • Tailings Length: ≈45
  • Power Supply: 220V/380V/415V, 50Hz
  • Cutting Head: Fiber Laser Head
  • Cutting Shapes: Round Hole, Square Hole, Plum Blossom Hole, Louver Hole, Diagonal Cut, Arc Shape, Bevel 45 Degree Angle Cutting
Technical Specifications
Cutting Material Stainless Steel, Aluminum, Copper, Flat Iron, Nickel Titanium Alloy, Titanium, High Temperature Alloy, Lithium, Magnesium, and Other Metal Materials
Cutting Head Fiber Laser Head
Weight 300kg
Cutting Speed 100-800mm/min
Irregular Pipe Circumcircle≤φ280mm
Power 3KW
Cooling System Water Cooling
Cutting Tube Length 6000mm
Feeding Method Semi-Automatic Feeding
Round Pipe φ8mm-φ230mm
Applications
The Mingzhou B170 Aluminum Tube Cutting Machine is suitable for various industrial applications including metal fabrication, construction, and manufacturing. It handles materials such as Stainless Steel, Aluminum, Copper, Flat Iron, Nickel Titanium Alloy, Titanium, High Temperature Alloy, Lithium, Magnesium, and other metal materials.
With ISO and CE certifications, this cutting machine meets international safety and quality requirements. The automatic type design simplifies the cutting process, making it efficient and user-friendly for operators.
Model:
B170
Price Range:
USD 10000 - USD 30000
Minimum Order:
1 piece
Delivery Time:
10-30 days
Monthly Capacity:
1000 pieces
