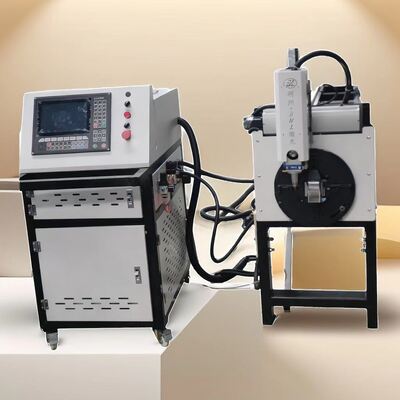

High Precision Metal Tube Laser Cutting Machine with 6000 mm Tube Holding Length and ±0.02mm Accuracy Featuring Water Cooling

Mingzhou Intelligent Laser Tube Cutter - Customized Processing Solutions for 100+ Industry Applications

Product Description:

The Metal Tube Laser Cutting Machine is a state-of-the-art Industrial Tube Laser Cutting Machine designed to deliver precision, efficiency, and versatility for various metal tube processing needs. Engineered with advanced technology, this machine supports a wide range of file formats including AI, BMP, DST, DWG, DXF, DXP, LAS, and PLT, ensuring seamless compatibility with most design software. This feature allows users to easily import detailed designs and execute complex cutting operations with high accuracy.

Equipped with high-quality servo motors from renowned brands such as BOCHU, WEIHONG, SHANGSAI, and YASKAWA, the Metal Tube Laser Cutting Machine guarantees smooth, stable, and high-speed operation. These servo motors contribute to the machine’s impressive cutting speed of up to 150 meters per minute, significantly enhancing productivity and reducing turnaround times for industrial applications.

• Product Name: Metal Tube Laser Cutting Machine
• Equipped with high-precision Taiwan Precision and Liangchi linear guides for smooth and accurate movement
• Tailing length of 180mm ensures efficient cutting and minimal material waste
• Uses Wavelength optical lenses for superior laser focus and cutting quality
• Compatible with various tube specifications: 120mm, 165mm, 230mm, 280mm, and 350mm
• Laser brand options include Raycus, Max, IPG, LEAD, RECI, BWT, and Raytool to suit different cutting needs
• Designed as a versatile Laser cutter capable of handling complex tube profiles
• Ideal for Tube Profile Laser Cutting Machine applications, providing precise and efficient cutting solutions
• Specialized Aluminum Tube Laser Cutting Machine capabilities for clean and accurate aluminum tube processing

①Supports pure single-mode output with beam quality m²≤1.22, featuring independent thermal management technology for energy storage that adapts to demanding scenarios. ③High reliability with stability ≤±1%. ④Enhanced electrical-optical efficiency through low-redundancy design to control costs. ⑤Outstanding anti-reflection capability for non-ferrous metal processing. Intelligent monitoring of defective blocks and user-friendly human-machine interaction for smart manufacturing.

1. The built-in amplifier significantly enhances signal stability with strong anti-interference capabilities, featuring side collision alarms and temperature drift correction. 2. Equipped with EtherCAT bus communication and a new large ceramic ring sensor, it offers superior durability and wear resistance, preventing cutting head damage during operation and effectively addressing challenging cutting positions.

The Fangling Control System features a built-in circular library with essential cutting patterns, enabling truly programming-free drafting. It supports single-channel operation and instant startup, with a USB interface for direct file transfer from USB drives, facilitating field operations. All functions and workflows are upgradable online, eliminating after-sales concerns.



The automatic pneumatic chuck features a precision internal transmission mechanism that enhances accuracy through rack-and-pinion gear drive. Specifically engineered for cutting small pipes, it delivers flexible rotational capabilities and high-speed rotation to meet the demands of rapid and efficient cutting operations.

The front chuck features a fully sealed dust-proof design to prevent dust ingress, with an aluminum alloy panel and stainless steel cover for a sleek appearance. It offers full travel clamping range without clamping device adjustment, delivering strong clamping force, high load-bearing capacity, stable performance, high efficiency, and precise clamping accuracy.

The clawed rear chuck can clamp the irregular pipe, keep the pipe from slipping, and has the function of dust removal or blowing. It has a large clamping stroke, a small claw, and is easy to use. It has a strong clamping force, and can realize the processing of heavy pipe. And the integral support base structure improves the stability of the support bearing.

Featuring an advanced automatic support system, it ensures stability and precision during cutting. This component is essential for maintaining pipe alignment, guaranteeing clean, accurate, and consistent cuts regardless of material length or diameter.

The servo motor stabilizes and drives the optical beam, controlling the z-axis movement according to programmed instructions to achieve high-precision cutting. Users can adjust parameters as needed.

Servo drivers

The motor is stable, and the distance between nozzle and pipe is kept constant, which ensures the cutting quality and cutting speed.

The Hanli refrigeration laser chiller features ±0.1℃ precision temperature control technology, delivering stable cooling performance, user-friendly operation, and extended service life. It effectively mitigates thermal fluctuations during laser operation, ensuring consistent output power and superior beam quality.

Yicai Air Compressor: Energy-efficient technology. Utilizing permanent magnet variable frequency technology, Yicai Air Compressor achieves 15%-20% higher energy efficiency than conventional models. Through collaboration with global industry leaders like Atlas Copco, Yicai has mastered oil-free screw technology, filling the gap in domestic high-end compressor production.

The machine adopts plate welding structure bed, bed structure to reach the best stress point and support, the integrated welding fixed can bear greater load, and after aging treatment, greatly reduces the internal stress of the bed, ensures the long-term stable operation of the equipment.

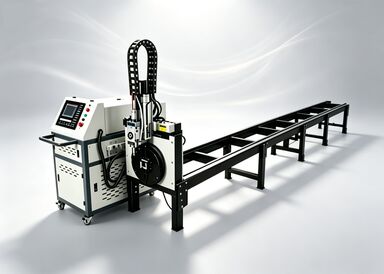

The Mingzhou M100-2 Metal Tube Laser Cutting Machine is an advanced and versatile cutting solution designed to meet the diverse needs of metal fabrication industries. Originating from Foshan, China, and certified by ISO and CE, this pipe laser cutting machine combines precision, efficiency, and reliability, making it ideal for a wide range of application occasions and scenarios.

This machine excels in cutting various materials such as metal, stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, and other metal tubes. Its water cooling system ensures optimal operating temperature, enhancing performance and durability during continuous operation. With a tailing length of 180mm and CNC control, the M100-2 model guarantees high precision and automation, making it suitable for complex and intricate cutting tasks.

In industrial manufacturing environments, the Mingzhou M100-2 is widely used for producing components that require precise tube cutting, such as automotive parts, aerospace components, and machinery manufacturing. Its ability to cut different metal tubes efficiently makes it indispensable in workshops specializing in metal fabrication and assembly.

The machine is also highly effective as a guardrail cutting machine, providing accurate cuts for safety railings used in construction, infrastructure projects, and public facilities. Its precision and speed enable manufacturers to meet tight deadlines while maintaining top-quality standards.

Moreover, the Copper Tube Laser Cutting Machine capability of the M100-2 allows it to handle delicate materials like copper tubes, which are commonly used in plumbing, HVAC systems, and electrical applications. This versatility broadens its application scope, serving industries that require both robustness and finesse in tube cutting.

With a minimum order quantity of 1PC and a price range of USD 10,000 to 30,000, Mingzhou offers competitive pricing for businesses of all sizes. The package includes secure packing with PP film, wooden case, and wooden frame to ensure safe delivery within 15 days. Payment terms such as T/T and L/C provide flexible options for customers worldwide.

Thanks to a supply ability of 1000PCS per month, the M100-2 pipe laser cutting machine is readily available to meet high demand. Whether for heavy industrial use or specialized production lines, this machine delivers consistent quality and performance across various metal tube cutting applications, making it a valuable asset in the metalworking industry.

The Mingzhou Metal Tube Laser Cutting Machine, model M100-2, is a highly versatile Copper Tube Laser Cutting Machine designed for precision and efficiency. Originating from Foshan, China, this machine is certified with ISO and CE, ensuring top quality and reliability for industrial applications.

Our Tube Profile Laser Cutting Machine offers multiple laser power options ranging from 1500W to 6000W, allowing you to customize the cutting capability according to your specific needs. With a maximum acceleration of 1.5 G, it delivers fast and accurate processing for a variety of tube profiles.

This Copper Tube Laser Cutting Machine supports a wide range of hole and feature processing, including cutting off, circular holes, square holes, plum blossom holes, diamond holes, S-shaped louvers, oblique cutting, diagonal cut, arc cutting, and 45° bevel cutting. It is perfect for complex tube fabrication tasks requiring precision and flexibility.

We provide customizable packaging options such as PP film, wooden case, and wooden frame to ensure safe delivery. The machine’s packing dimensions are 3730×600×1380 mm, while the machine itself measures 6730×600×1380 mm. With a supply ability of 1000 pieces per month and a delivery time of just 15 days, we can meet your production demands promptly.

The minimum order quantity is 1PC, and the price range is USD 10,000 to 30,000, depending on the configuration. Payment terms include T/T and L/C, making the purchasing process convenient and secure.

Choose the Mingzhou Metal Tube Laser Cutting Machine M100-2 for a reliable, efficient, and customizable solution to all your copper tube laser cutting needs.

Our Metal Tube Laser Cutting Machine is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We offer comprehensive installation guidance, operational training, and regular maintenance services to maximize the machine's efficiency and lifespan.

Technical support includes troubleshooting assistance, software updates, and remote diagnostics to quickly resolve any issues. Our experts provide detailed manuals and user guides to help users understand the full capabilities of the machine and operate it safely and effectively.

We also offer customization services to tailor the machine’s features to specific industrial requirements, ensuring seamless integration into your production line. Spare parts and consumables are readily available to minimize downtime and maintain consistent cutting quality.

Regular maintenance contracts and extended warranty options are available to provide peace of mind and protect your investment. Our team is committed to delivering prompt and professional service to keep your Metal Tube Laser Cutting Machine operating at peak performance.

The Metal Tube Laser Cutting Machine is carefully packaged to ensure safe delivery and optimal protection during transit. The machine is securely placed in a sturdy wooden crate with foam padding and shock-absorbing materials to prevent any damage from vibrations or impacts.

All delicate components and accessories are individually wrapped and cushioned to avoid scratches or breakage. The packaging is clearly labeled with handling instructions and fragile warnings to ensure proper care by shipping personnel.

For shipping, we utilize reliable freight services that specialize in handling heavy industrial equipment. The machine is typically shipped via sea or air freight, depending on the destination and customer preference, with tracking provided for full shipment visibility.

Upon arrival, customers are advised to inspect the packaging for any signs of damage before unpacking. Our support team is available to assist with installation guidance and any concerns related to shipping or product condition.

Q1: What is the brand and model number of the Metal Tube Laser Cutting Machine?

A1: The Metal Tube Laser Cutting Machine is branded Mingzhou, and the model number is M100-2.

Q2: Where is the Metal Tube Laser Cutting Machine manufactured?

A2: This machine is manufactured in Foshan, China.

Q3: What certifications does the Mingzhou M100-2 Metal Tube Laser Cutting Machine have?

A3: The machine is certified with ISO and CE certifications, ensuring quality and safety standards.

Q4: What is the minimum order quantity and price range for this machine?

A4: The minimum order quantity is 1 piece, with prices ranging from USD 10,000 to 30,000 depending on specifications.

Q5: How is the Metal Tube Laser Cutting Machine packaged and what is the delivery time?

A5: The machine is securely packaged using PP film, wooden cases, and wooden frames. The typical delivery time is 15 days.

Q6: What payment terms are accepted for purchasing the Mingzhou M100-2?

A6: Payment terms accepted include T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Q7: What is the supply capacity of the Mingzhou Metal Tube Laser Cutting Machine?

A7: The supply ability is 1000 pieces per month, ensuring steady availability for orders.
