Control cabinet size 880×600×1230 Mm Stainless Steel Tube Laser Cutting Machine Max Tube Length 6200 Mm Solution for Metal Tube Cutting

Name: Control cabinet size 880×600×1230 Mm Stainless Steel Tube Laser Cutting Machine Max Tube Length 6200 Mm Solution for Metal Tube Cutting
Brand: Foshan Mingzhou Intelligent Equipment Co., Ltd
SKU: M100-2
Price: 20,000.00 USD
Availability: InStock

Brand Name:	Mingzhou
Model Number:	M100-2
MOQ:	1PC
Price:	USD10000-30000
Payment Terms:	T/T,L/C
Supply Ability:	1000PCS/M

Detail Information

Product Description

Detail Information

Certification:

ISO, CE

Linear Guide Brand:

Taiwan Precision, Liangchi

Cutting Speed:

0-150 M/min

Operation Mode:

Continuous Wave (CW)

Tailing Length:

180mm

Optical Lens Brand:

Wavelength

Single Tube Weight:

Less Than 70kgs

Supported File Formats:

AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Positioning Accuracy:

±0.02mm

Packaging Details:

PP Film, Wooden Case, Wooden Frame

Supply Ability:

1000PCS/M

Highlight:

880×600×1230 Mm Control Cabinet Metal Tube Laser Cutting Machine

6200 Mm Max Tube Length Industrial Tube Laser Cutting Machine

Stainless Steel Tube Cutting Tube Profile Laser Cutting Machine

Product Description

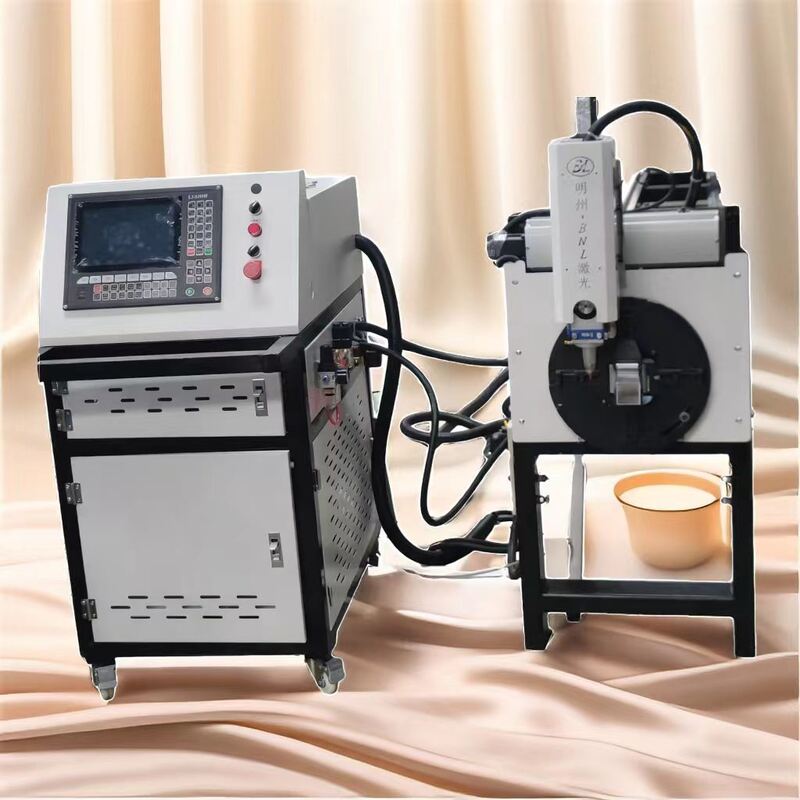

Metal Tube Laser Cutting Machine

The Metal Tube Laser Cutting Machine is a state-of-the-art industrial solution designed to deliver precision, efficiency, and versatility for various metal tube processing needs. Engineered with advanced technology, this machine supports multiple file formats including AI, BMP, DST, DWG, DXF, DXP, LAS, and PLT, ensuring seamless compatibility with most design software.

Key Features

High-precision Taiwan Precision and Liangchi linear guides for smooth, accurate movement
180mm tailing length for efficient cutting and minimal material waste
Wavelength optical lenses for superior laser focus and cutting quality
Compatible with tube specifications: 120mm, 165mm, 230mm, 280mm, and 350mm
Laser brand options include Raycus, Max, IPG, LEAD, RECI, BWT, and Raytool
Versatile laser cutter capable of handling complex tube profiles
Specialized aluminum and brass tube cutting capabilities

Technical Specifications

Model	M100-2
Control Cabinet Size	880×600×1230 mm
Configuration	Horizontal/Side-mounted
Machine Weight	Approx. 500 kg
Machine Dimensions (L×W×H)	6730×600×1380 mm
Cutting Speed	0-150 m/min
Axis Adjustment Range	65 mm
Max. Acceleration	1.5 G
Application Materials	Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, brass, and other metal tubes

Cutting Capabilities

This industrial tube laser cutting machine excels in hole and feature processing, capable of performing various cutting styles including tube cutting, circular holes, square holes, plum blossom holes, diamond holes, S-shaped louvers, oblique cuts, diagonal cuts, arc cuts, and 45° bevel cuts.

Applications

Ideal for automotive parts, aerospace components, machinery manufacturing, construction guardrails, plumbing, HVAC systems, and electrical applications. Suitable for both small-scale workshops and large manufacturing plants.

Customization Options

Available with laser power options from 1500W to 6000W. Customizable packaging with PP film, wooden cases, and wooden frames for safe delivery.

Support & Services

Comprehensive technical support including installation guidance, operational training, maintenance services, troubleshooting assistance, software updates, and spare parts availability.

Frequently Asked Questions

What is the brand and model number?

Mingzhou M100-2 Metal Tube Laser Cutting Machine

Where is the machine manufactured?

Foshan, China

What certifications does it have?

ISO and CE certified

What is the minimum order quantity and price?

Minimum order: 1 piece, Price range: USD 10,000 - 30,000

What is the delivery time and packaging?

15 days delivery with secure packaging using PP film, wooden cases, and wooden frames

What payment terms are accepted?

T/T (Telegraphic Transfer) and L/C (Letter of Credit)

What is the supply capacity?

1000 pieces per month
