M12 CNC Metal Tube Laser Cutting Machine For Stainless Steel Tubes

Brand Name:	Mingzhou
Model Number:	M12
MOQ:	1 Piece
Price:	USD10000~30000
Packaging Details:	Wooden Case, Pallet, Carton, Plastic Paper
Payment Terms:	By T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Power Supply:

380V, 50Hz, 3-phase

Laser Cutting Ac:

±10um

Environment Tei:

5—35 °C

Laser Source:

BWT Or RECI Or MAX Or RAYCUS

Main Application:

Metal Pipe & Profile Cutting

Processable Pipe Diameter:

φ8mm-φ120mm

Max Acceleration:

2.0G

Positioning Accuracy:

±0.02mm

Laser Power:

1500W / 2000W / 3000W Optional

Min Tail Material Length:

80MM

Control System:

Drawing-Free Intelligent Operating System

Processable Profiles:

Round Tube, Square Tube, Channel Steel, Angle Steel

Applicable Metal Materials:

Stainless Steel, Carbon Steel, Iron Pipe, Aluminum Alloy

Cooling Equipment: Matching Industrial Water Chiller:

Matching Industrial Water Chiller

Max Processing Length:

6000mm

Operation Language:

Chinese, English, Multi-Language Support

Supply Ability:

1000 Pcs/m

Product Description

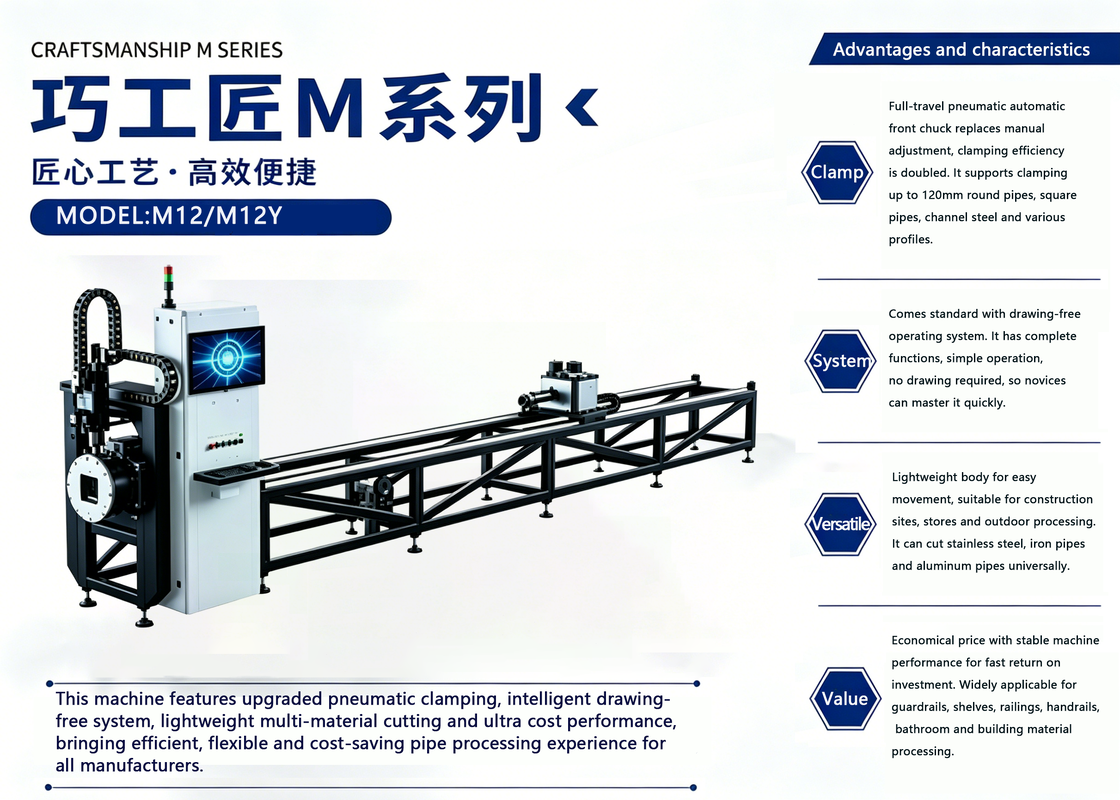

M12 CNC Metal Tube Laser Cutting Machine For Stainless Steel Tubes

Craftsmanship M Series M12 CNC Metal Tube Laser Cutting Machine is designed with advanced chuck structure that leaves only 80mm ultra-short tail scraps, greatly boosting raw material utilization and cutting down your overall manufacturing costs.

It comes standard with a semi-automatic feeding system to support stable, high-efficiency continuous processing, perfectly matching small & medium batch production as well as custom diversified metal tube fabrication demands.

Equipped with a compact lightweight frame, intuitive drawing-free control system and long-term stable operation performance, this M12 laser tube cutter delivers excellent comprehensive value for all metal pipe and profile processing manufacturers.

Key Features

Upgraded High-Efficiency Front Chuck: Automatic pipe clamping without frequent manual adjustment, simplifying operation steps and lifting daily production efficiency.
Expanded Universal Clamping Capacity: Maximum clamping size reaches 120mm, compatible with round tubes, square tubes, channel steel, angle steel and various special profiles.
Intelligent Drawing-Free Operating System: Upgraded simplified control system requires no complicated CAD pre-programming, lowering the operation learning threshold.
Outstanding Cost-Effectiveness: Reasonable purchase price paired with reliable stable running performance for fast investment return.
Compact Lightweight Flexible Structure: Optimized lightweight body design for easy transport and repositioning across various work environments.
Universal Multi-Metal Cutting Performance: Supports high-precision, high-speed cutting for stainless steel tubes, carbon steel pipes, iron tubes, aluminum alloy tubes and other metal profiles.
Wide Cross-Industry Application: Utilized for manufacturing guardrails, storage shelves, security fences, stair handrails, bathroom hardware and various construction metal profiles.

Technical Specifications

Warranty	12 Months
Beam Quality	1.1m²
Acceleration	2.0G
Tolerance	±0.02mm
Application	Metal Pipe Cutting
Environment Temperature	5—35 °C
Laser Generator	BWT Or RECI Or MAX Or RAYCUS
Cutting Accuracy	±0.02mm
Effective Cutting Length	<6000mm
Power Supply	380V, 50Hz, 3-phase

Manufacturing Advantages

Round-the-Clock Global After-Sales Service: 24/7/365 full-lifecycle after-sales service worldwide with fast remote fault diagnosis and door-to-door maintenance.
Original Manufacturer R&D & Customization Capacity: Decades of tube laser equipment R&D experience with specially optimized metal pipe processing and ultra-short tail design.
Premium Fiber Laser Core for Powerful Performance: Advanced fiber laser technology for fast cutting speed, long-term stable running performance and strong compatibility.
Rigorous Whole-Link Quality Assurance: Strict quality monitoring covering every production stage with outstanding durability, operational stability and ultra-high cutting precision.
Intelligent Drawing-Free Operation System: Smart control modules and high-precision cutting technology that eliminates complicated pre-drawing programming requirements.

Product Images
