Metal Tube Laser Cutting Machine

Q16Y Industrial Pipe Laser Cutting Machine With Pneumatic Clamping System For Steel Structure Engineering Industry

All Category

Metal Tube Laser Cutting Machine

Semi Automatic Punching Machine

Handheld Laser Welding Machine

Laser Sheet Cutting Machine

Ms. Amy Li

wrd@fsmzjx.com

008613322845920

mz13322845920

Contact Now

Q16Y Industrial Pipe Laser Cutting Machine With Pneumatic Clamping System For Steel Structure Engineering Industry

Brand Name:	Mingzhou Laser Equipment
Model Number:	Q16Y
MOQ:	1 Piece
Price:	USD10000~30000
Packaging Details:	Wooden Case, Pallet, Carton, Plastic Paper
Payment Terms:	By T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Pipe:

φ10mm-φ165mm

Laser Cutting Accuracy:

±10um

Control System:

Drawing-Free Intelligent Operating System

Environment Temperature:

5—35 °C

Cutting Accuracy:

±0.02mm

Min Tail Materia:

Powersupply:

380V, 50Hz, 3-phase

Cooling Equipm:

Matching Industrial Water Chiller

Laser Generator:

BWT Or RECI Or MAX Or RAYCUS

Acceleration:

Laser Power:

1500W/2000W/3000W/6000W Optional

Applicable Metal:

Stainless Steel, Carbon Steel, Iron Pipe, Aluminum Alloy Applicable Metals

Processable Pro:

Round Tube, Square Tube, Channel Steel, Angle Steel

Application:

Metal Pipe Cutting

Supply Ability:

1000 Pcs/m

Product Description

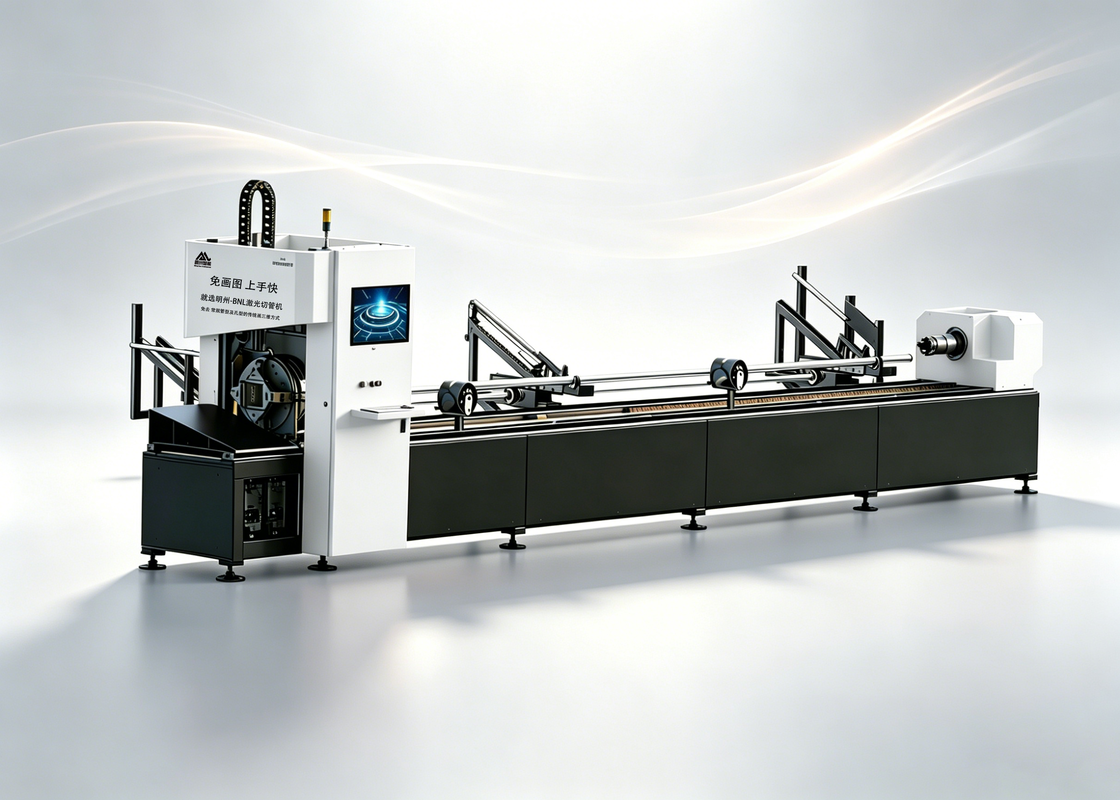

Q16Y Industrial Pipe Laser Cutting Machine With Pneumatic Clamping System For Steel Structure Engineering Industry

The Q16Y industrial pipe laser cutting machine from Mingzhou Laser — part of the Easy-Cut Q Series — is equipped with a high-performance pneumatic clamping system, purpose-built for the steel structure engineering industry. It processes round, square, rectangular and special-shaped steel pipes for pipe trusses, steel building frames, grid structures, guardrail posts and bracket fabrication, compatible with carbon steel, galvanized steel and stainless steel materials.

Its pneumatic clamping system delivers fast, firm and stable gripping across a wide range of pipe diameters, especially reliable for thick-walled steel pipes in heavy-duty batch prefabrication. The machine produces clean, burr-free cut edges ready for direct on-site welding, eliminating secondary grinding and reducing assembly errors. With robust industrial construction and intuitive operation, it helps steel structure fabricators boost prefabrication efficiency, shorten project lead times and lower overall production costs.

Key Features

High-performance pneumatic clamping system: fast clamping, wide diameter range, stable grip for thick-walled steel pipes
Tailored for steel structure engineering: pipe trusses, steel frames, guardrails, grid structures and more
Clean burr-free cut surfaces, parts fit directly for welding, no secondary finishing needed
Cutting, punching and notching completed in one pass, reduces process turnover for prefabrication
Drawing-free CNC control, easy to operate, quick changeover for diverse project specifications
Heavy-duty stress-relieved machine bed, maintains stable accuracy for long-running mass production
Intelligent nesting optimizes material layout, cuts tail scrap and reduces bulk steel material costs
Rugged low-maintenance design, adapts to heavy-duty workshop environments of steel fabrication

Technical Specifications

Warranty	12 Months
Beam Quality	1.1m²
Acceleration	2.0G
Tolerance	±0.02mm
Application	Metal Pipe Cutting
Environment Temperature	5-35°C
Laser Generator	BWT Or RECI Or MAX Or RAYCUS
Cutting Accuracy	±0.02mm
Effective Cutting Length	<6000mm
Power Supply	380V, 50Hz, 3-phase

Key Advantages

Unmatched After-Sales Service: We provide 24/7/365 professional after-sales support, including prompt remote troubleshooting, on-site maintenance, and genuine spare parts supply, ensuring uninterrupted and stable production.
Original Factory Strength: As a source manufacturer with extensive R&D and production experience, our machines are designed for high efficiency, material-saving performance, and intelligent cutting solutions, minimizing waste and maximizing production benefits.
Aspirational Spirit & Ultimate Performance: Driven by a commitment to excellence, our machines adopt advanced fiber laser technology, delivering high cutting speed, stable operation, and strong adaptability to meet complex processing requirements.
Strict Quality Commitment: Comprehensive quality control is applied throughout the entire production process, from raw material selection to final assembly, fully complying with international standards to ensure durable, reliable, and high-precision equipment.
Intelligent & Efficient Integration: Integrated with intelligent control systems and high-precision cutting technology, the machine enables easy operation without professional drawing skills, significantly improving efficiency and reducing production costs.
