Q12Y Fiber Laser Tube Cutting Machine with High Accuracy & Multi-Tube Cutting

Brand Name:	Mingzhou Laser Equipment
Model Number:	Q12
MOQ:	1 Piece
Price:	USD10000~30000
Packaging Details:	Wooden Case, Pallet, Carton, Plastic Paper
Payment Terms:	By T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Main Application:

Metal Pipe & Profile Cutting

Max Acceleration:

2.0G

Control System:

Drawing-Free Intelligent Operating System

Laser Source:

BWT Or RECI Or MAX Or RAYCUS

Max Processing Length:

6000mm

Applicable Metal Materials:

Stainless Steel, Carbon Steel, Iron Pipe, Aluminum Alloy

Power Supply:

380V, 50Hz, 3-phase

Min Tail Material Length:

45MM

Positioning Accuracy:

±0.02mm

Processable Pipe Diameter:

φ8mm-φ120mm

Processable Profiles:

Round Tube, Square Tube, Channel Steel, Angle Steel

Cooling Equipment: Matching Industrial Water Chiller:

Matching Industrial Water Chiller

Environment Tei:

5—35 °C

Laser Power:

1500W / 2000W / 3000W Optional

Laser Cutting Ac:

±10um

Operation Language:

Chinese, English, Multi-Language Support

Supply Ability:

1000 Pcs/m

Product Description

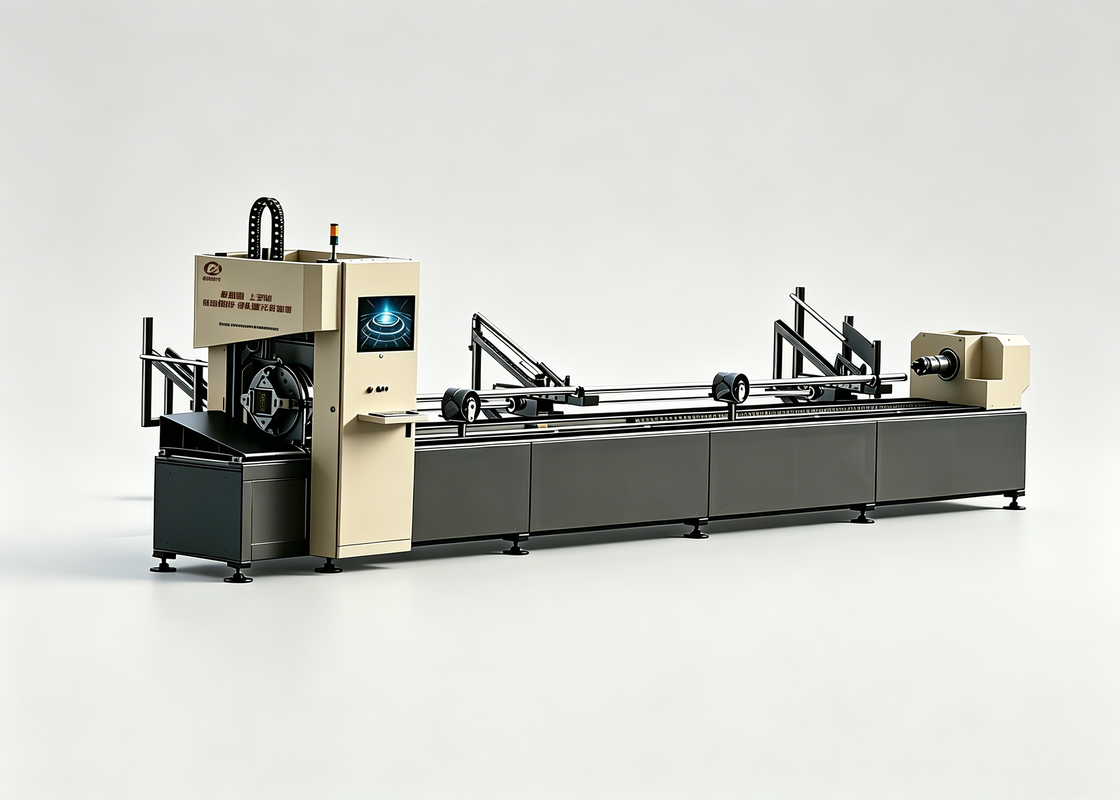

Q12Y Fiber Laser Tube Cutting Machine with High Accuracy & Multi-Tube Cutting

The Q12Y automatic loading tube laser cutting machine is specifically designed for efficient steel pipe and structural metal processing in the construction materials industry. Equipped with a high-performance fiber laser source and an intelligent CNC control system, it delivers precise, clean, and burr-free cutting for carbon steel, stainless steel, galvanized steel, alloy steel, and other metal pipes.

Supporting a wide range of profiles, including round tubes, square tubes, rectangular tubes, oval tubes, angle steel, and channel steel, the machine is suitable for various applications such as steel structure fabrication, curtain wall systems, scaffolding, guardrails, and pipeline support manufacturing. With an integrated automatic loading system and high-precision servo drive technology, it enables continuous and unattended production, reducing manual labor requirements, minimizing material waste, and improving overall manufacturing efficiency.

Designed for large-scale production environments, the Q12Y provides a reliable and cost-effective tube laser cutting solution for steel fabricators and construction material manufacturers seeking high precision, stable operation, and efficient mass production capabilities.

Q12Y Fiber Laser Tube Cutting Machine with High Accuracy & Multi-Tube Cutting

Feature

Automatic Tube Loading System
The integrated automatic loading system minimizes manual handling, enables continuous batch processing, and supports fully unattended production, greatly enhancing overall manufacturing efficiency.

High-Precision Fiber Laser Cutting
Driven by advanced fiber laser technology, the machine provides clean, smooth, and burr-free cutting with accuracy up to ±0.1mm, allowing finished parts to be directly used for welding and assembly without additional processing.

Wide Profile Compatibility
The machine is capable of processing various materials and profiles, including round tubes, square tubes, rectangular tubes, oval tubes, angle steel, channel steel, and other customized metal sections.

Intelligent CNC Control System
Equipped with an intuitive CNC control interface, the system supports CAD/CAM file import and flexible programming functions, simplifying operation while adapting efficiently to diverse production requirements.

High-Speed Servo Drive System
Featuring a high-performance servo drive system, the machine delivers rapid positioning, smooth movement, and reliable operation, making it ideal for both large-scale production and customized manufacturing.

Heavy-Duty Machine Bed Structure
The welded machine frame with stress-relief treatment effectively minimizes vibration and ensures long-term cutting accuracy during continuous high-load working conditions.

Intelligent Nesting Optimization
Advanced nesting software intelligently optimizes cutting layouts, maximizes material utilization, and reduces material waste, helping manufacturers decrease production costs.

Energy-Efficient Operation
Compared with conventional cutting equipment, this system offers lower energy consumption, allowing manufacturers to reduce operating expenses while maintaining efficient production performance.

Modular Maintenance-Friendly Design
The modular machine structure allows convenient access to key components, making daily maintenance easier, reducing downtime, and enhancing long-term operating stability.

Wide Range of Construction Applications
This machine is widely applied in steel structure manufacturing, curtain wall production, guardrail processing, scaffolding fabrication, and pipeline support production within the construction industry.

Specification

Warranty	12 Months
Beam Quality	1.1m2
Acceleration	2.0G
Tolerance	±0.02mm
Application	Metal Pipe Cutting
Environment Temperature	5—35 °C
Laser Generator	BWT Or RECI Or MAX Or RAYCUS
Cutting Accuracy	±0.02mm
Effective Cutting Length	＜6000mm
Powersupply	380V, 50Hz, 3-phase

Advantage

24/7 Global After-Sales Support

We offer dependable 24/7/365 global after-sales service covering the complete machine lifecycle. Our professional technical team provides rapid remote assistance, on-site maintenance support, and stable supply of genuine spare parts, effectively reducing equipment downtime and ensuring uninterrupted production.

Direct Manufacturer with Strong R&D & Customization Capability

As a direct manufacturer with years of expertise in tube laser equipment development and manufacturing, our M Series laser cutting machines are designed for efficient metal tube processing. The ultra-short tail material design helps minimize material waste, while intelligent cutting technology improves production efficiency and enhances overall cost performance.

High-Performance Fiber Laser Core Technology

Featuring advanced fiber laser technology, the machine delivers high-speed cutting, reliable long-term performance, and excellent processing flexibility. It is capable of handling complex cutting tasks for round, square, rectangular, and irregular metal profiles with outstanding precision and consistency.

Strict End-to-End Quality Control

We conduct comprehensive quality inspections throughout the entire production process, from raw material selection and component inspection to final machine testing. Meeting international quality standards, each machine provides excellent durability, stable operation, and consistent cutting performance.

Intelligent, Drawing-Free Operation System

Equipped with an intelligent control system and precise cutting technology, the machine removes the need for complicated CAD drawing processes. Operators can quickly master the operation without professional drawing experience, improving production efficiency and reducing overall manufacturing costs.
