Mingzhou Laser RUIFA 1500W 5-in-1 Water-Cooled Handheld Fiber Laser Welder

Brand Name:	Mingzhou
Model Number:	MZ-1500T
MOQ:	1 Piece
Price:	USD10000~30000
Packaging Details:	Wooden Case, Pallet, Carton, Plastic Paper
Payment Terms:	By T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Aiming And Positioning:

Red Light

Operating Voltage:

220±20V,AC,PE,50/60Hz

Wire Feed Diameter:

0.8/1.0/1.2/1.6/2.0mm

Welding Speed:

0 ~ 120 Mm/s

Laser Generator:

BWT Or RECI Or MAX Or RAYCUS

Fiber Length:

10 M

Work Environment:

10~40°C, Humidity 10~85%, No Condensation

Supply Ability:

1000 Pcs/m

Highlight:

1500W handheld laser welder

water-cooled fiber laser welder

5-in-1 laser welding machine

Product Description

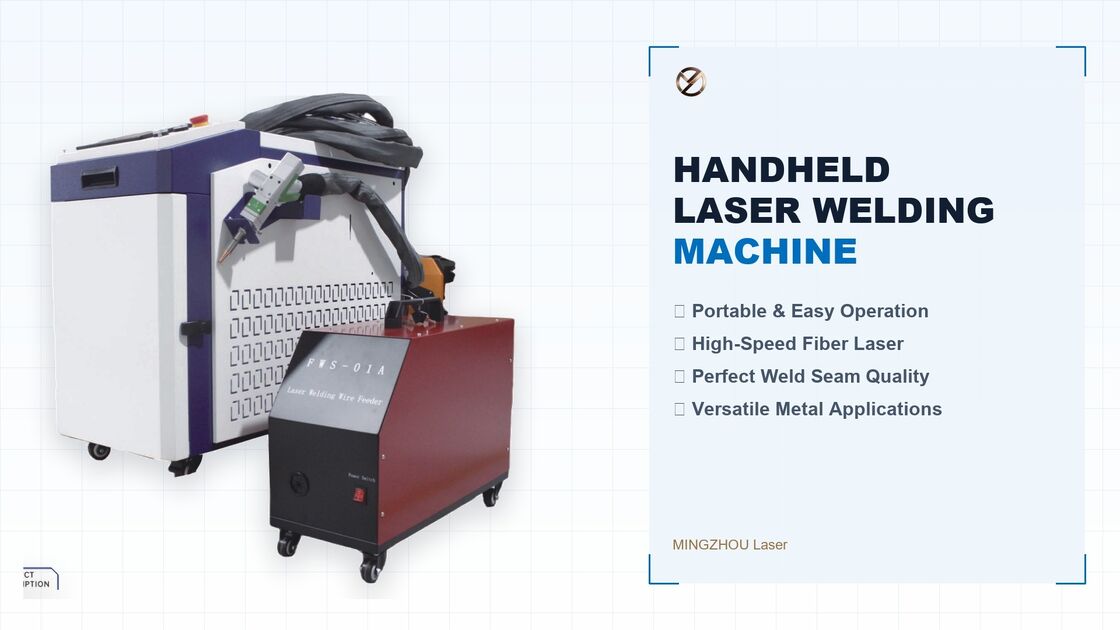

Mingzhou Laser RUIFA 1500W 5-in-1 Water-Cooled Handheld Fiber Laser Welder

Description

The Mingzhou Laser RUIFA 1500W 5-in-1 Handheld Fiber Laser Welder combines versatile laser processing with powerful and stable welding performance. Equipped with a 1500W fiber laser source and water-cooling system, it is designed for efficient metal fabrication and welding.

The lightweight ergonomic gun and intelligent control system make operation simple and comfortable. With flexible weld-width adjustment, multiple nozzles and safety protection functions, it is suitable for stainless steel, carbon steel, aluminum and other compatible metals.

Feature

5-in-1 Multifunctional System – Versatile solution for different metal processing needs.
1500W Fiber Laser – High-speed and stable welding performance.
Water Cooled – Efficient cooling for reliable continuous operation.
Smart Control System – Flexible settings for better weld formation.
Ergonomic Handheld Gun – Comfortable one-hand operation.
Clean Welds – Reduced weld marks, discoloration and post-processing.
Multiple Nozzles – Adaptable to different welding positions and applications.
Safety Protection – Multiple alarms and automatic laser lock-off.

Specification

laser wavelength	1080+10 nm
Work mode	Continuous/Modulation
Power adjustment range	10 ~ 100%
Fiber core diameter	25 or 50
Aiming and positioning	Red light
Fiber length	10 m
Welding speed	0 ~ 120 mm/s
Applicable thickness	< 3.5mm (depending on the material)
wire feed diameter	0.8/1.0/1.2/1.6/2.0mm
Operating voltage	220±20V,AC,PE,50/60Hz

Advantage

1. All-in-One Versatility

Combines welding, cutting, and cleaning functions in one handheld unit, eliminating the need for multiple tools and greatly improving work efficiency.

2. Lightweight & Ergonomic Design

The compact, ergonomic body ensures a comfortable grip for one-hand operation. It is easy to use, even for beginners, reducing operator fatigue during long shifts.

3. Superior Welding & Finishing Quality

Produces beautiful, smooth welds with no discoloration or deformation. It eliminates the need for time-consuming post-polishing, saving both labor and consumable costs.

4. High Safety & Reliability

Equipped with multiple safety features, including an auto-locking laser that stops emission when the workpiece is removed, ensuring safe operation at all times.

5. Wide Application & Flexibility

Compatible with various metal materials and adjustable via multiple-angle nozzles, it meets diverse processing needs for different workpieces in various industries.

Mingzhou Laser RUIFA 1500W 5-in-1 Water-Cooled Handheld Fiber Laser Welder
